Your first script

This tutorial writes a small script from scratch. You create it in the editor, open it in your code editor, make the hero walk with the keyboard, expose its speed in the inspector and tune it while the game runs. Each step introduces a piece that the rest of this section explains in depth.

You need a project made from the Top-down hex adventure template, named My Game. The template has a hero on a hex island and a Move action bound to WASD and the arrow keys, which the script reads. Any project works if it has an entity with a sprite and a vector action called Move; the namespace in the code then follows your project's name.

Create the script​

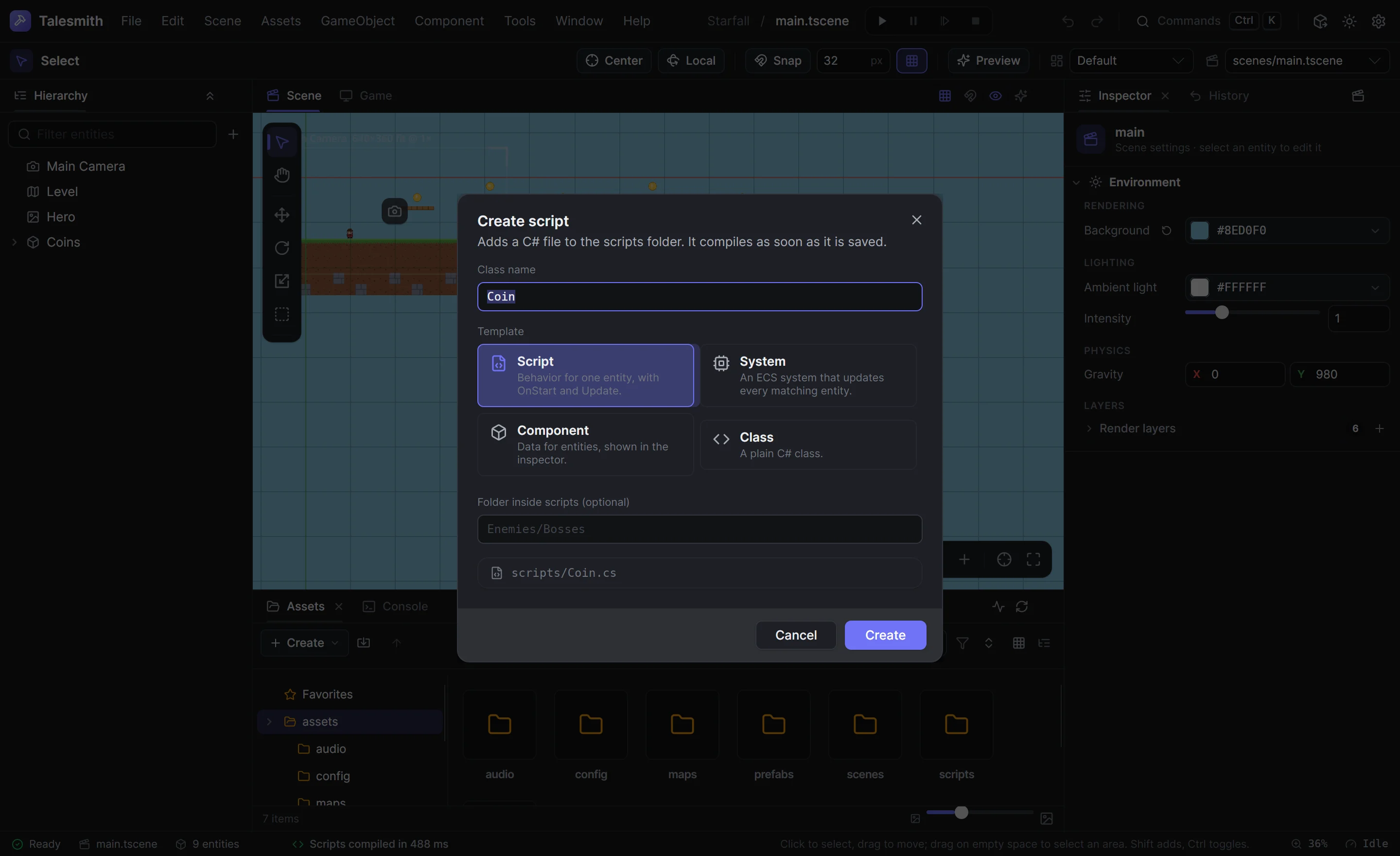

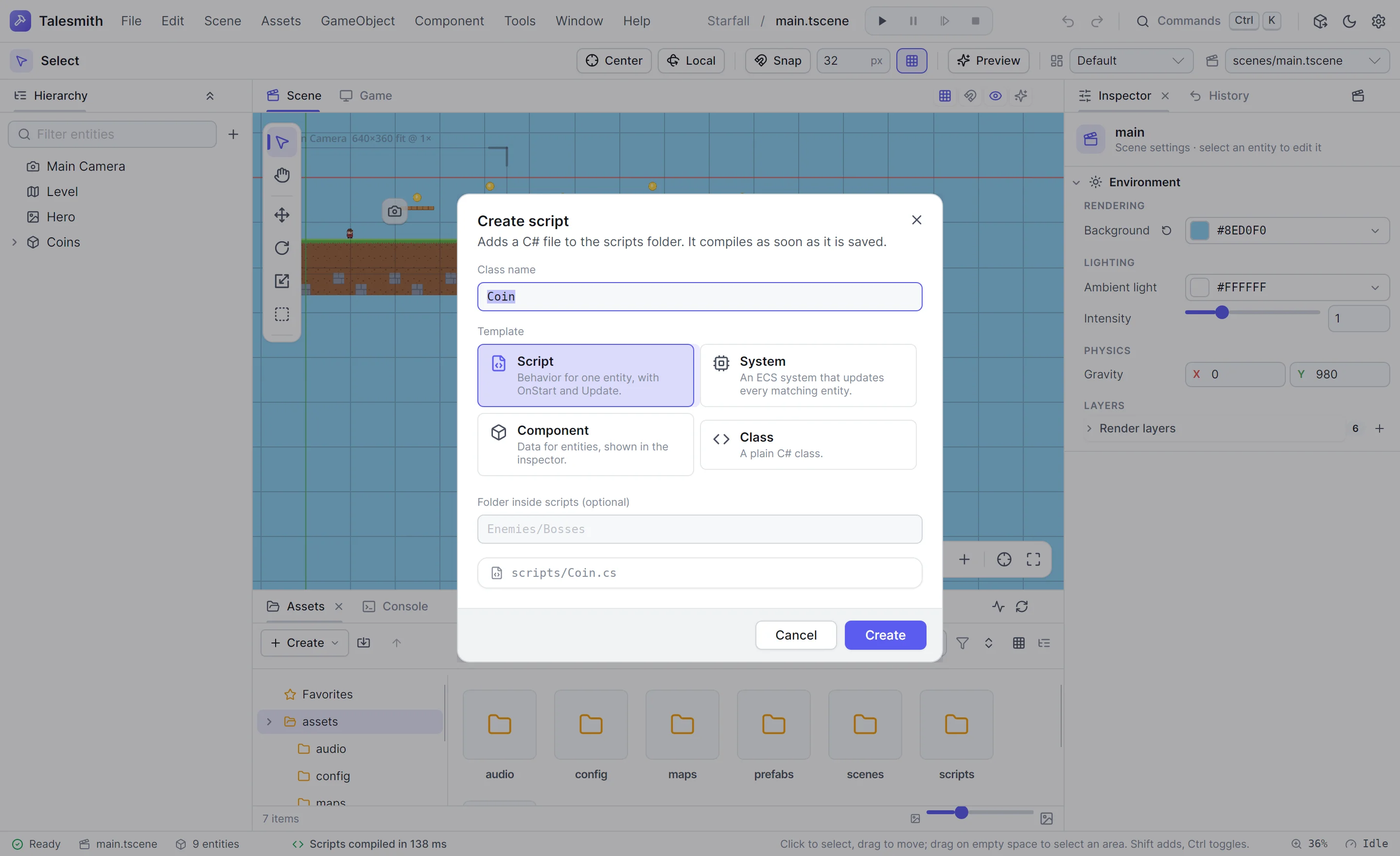

  1. Choose Assets › Create › Script…. The Create script dialog opens.
  2. Type Mover as the Class name and keep the Script template selected. Leave the folder empty.
  3. The dialog shows where the file will go, assets/scripts/Mover.cs. Click Create. The editor writes the file and opens it in your code editor.

Every .cs file under assets/scripts and its subfolders is a script file, except files in folders named bin or obj and folders whose name starts with a dot. The editor gives the class a namespace made from the project name and the folder: MyGame here, and MyGame.Enemies for a script created in Enemies. The new file looks like this:

assets/scripts/Mover.cs
namespace MyGame;

/// <summary>Describe what Mover does.</summary>
public sealed class Mover : Script
{
    [Tooltip("How fast the entity moves, in units per second.")]
    public float Speed = 100;

    protected override void OnStart()
    {
    }

    protected override void Update()
    {
    }
}

There are no using directives because every script can already use System, System.Collections.Generic, System.Linq, System.Numerics, System.Threading.Tasks and the engine namespaces that scripts need most: Talesmith.Assets, Talesmith.Assets.Textures, Talesmith.Audio, Talesmith.Authoring, Talesmith.Ecs, Talesmith.Input, Talesmith.Mathematics, Talesmith.Physics, Talesmith.Runtime.Components, Talesmith.Scripting and Talesmith.Systems.

The editor compiles the script as soon as the file is saved. The status bar shows Compiling scripts… and then Scripts compiled in some number of milliseconds.

Open the project in your IDE​

Choose Assets › Open C# project. The editor writes My Game.Scripts.csproj next to the assets folder and opens it in Visual Studio Code or Rider, whichever it finds first, so you get completion and documentation for the whole engine API. To use another editor, set the External code editor command on the Editor page of Settings.

The project file is only for your IDE. The editor compiles scripts itself and never builds that project, so you do not need to build anything from the IDE. See Compiling and hot reload for details.

Make the hero walk​

Replace the contents of Mover.cs with:

assets/scripts/Mover.cs
namespace MyGame;

/// <summary>Moves the entity with the Move action and turns its sprite to face the way it walks.</summary>
public sealed class Mover : Script
{
    [Range(0, 600)]
    [Tooltip("How fast the entity moves, in units per second.")]
    public float Speed = 200;

    protected override void OnStart() => Log.Info($"Moving at {Speed} units per second");

    protected override void Update()
    {
        var direction = Input.Vector("Move");
        Position += direction * Speed * Time.DeltaTime;
        if (direction.X != 0)
            GetComponent<Sprite>().FlipX = direction.X < 0;
    }
}

What each part does:

  • Update runs once per frame. Input.Vector("Move") reads the action as a direction whose length is at most 1, with down as positive Y, the way the world's Y axis points.
  • Time.DeltaTime is the number of seconds the frame covers. Multiplying by it makes the hero cover Speed units per second whether the game runs at 60 or 144 frames per second.
  • Position is the entity's position in world units. Assigning it moves the entity.
  • GetComponent<Sprite>() returns a reference to the entity's sprite, so setting FlipX changes the sprite itself, not a copy.
  • OnStart runs once before the first update and writes a line to the console under the script's name.
  • [Range(0, 600)] turns the field into a slider in the inspector, and [Tooltip] explains it when you hover the field.

Save the file. If you made a typing mistake, the status bar shows the number of errors and the console lists each one with its file and line; double-click an error to jump to it in your code editor.

Attach it to the hero​

  1. Select Hero in the Hierarchy.
  2. In the Inspector, click Add component, type mover and choose Mover under Scripts.
  3. A Mover section appears with a Speed slider set to 200.

The entity now has a Scripts component holding one Mover. An entity can carry several scripts, and the same script type can sit on any number of entities, each with its own field values.

Play and tune it​

  1. Press CtrlP. The scene starts in the Game panel and the console shows Hero: Moving at 200 units per second.
  2. Click the Game panel and walk with WASD or the arrow keys. The hero turns to face left and right.
  3. With the game still running, drag Speed in the inspector to 450. The hero speeds up at once.
  4. In Update, change direction * Speed to direction * Speed * 2 and save. The editor recompiles and swaps the new code into the running game without restarting it: the hero stays where it is and keeps the speed you set in the inspector, now doubled.
  5. Stop play mode. Values you changed in the inspector while playing go back to what the scene had before you pressed play.

Changing a field's initializer, such as Speed = 200, does not change a running script, because the swap keeps every field's current value. Initializers only give new scripts their starting values. Play mode does not start while the scripts have errors; the console says why.

Scripts never run while you edit the scene. They run in play mode and in exported games, which is why the hero stays put in the Scene panel.
