Your first plugin
This tutorial builds Spinners, a plugin with a Spinner component and a system that turns every entity that has one. You create the project from the editor, write the component and the system, build the plugin into the game, load it in the editor, play it, run it outside the editor and switch it off again. Every file is shown in full.
You need Talesmith built from source (see Installation), the .NET 10 SDK on the PATH, and a project to add the plugin to. The steps use a project called Coral Cove made from the Platformer template; any project works.
Create the plugin project
- Open the project in the editor and choose Window › Panels › Plugins. The Plugins panel opens on the right side of the window. A new project has no plugins, so it shows No plugins installed.

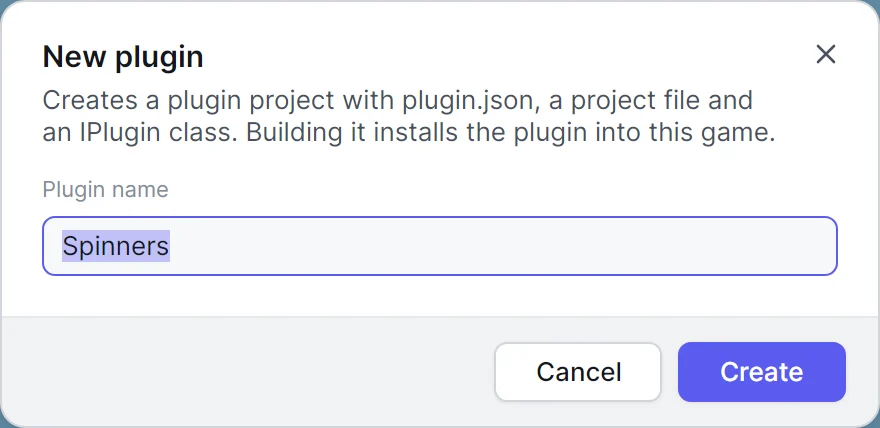

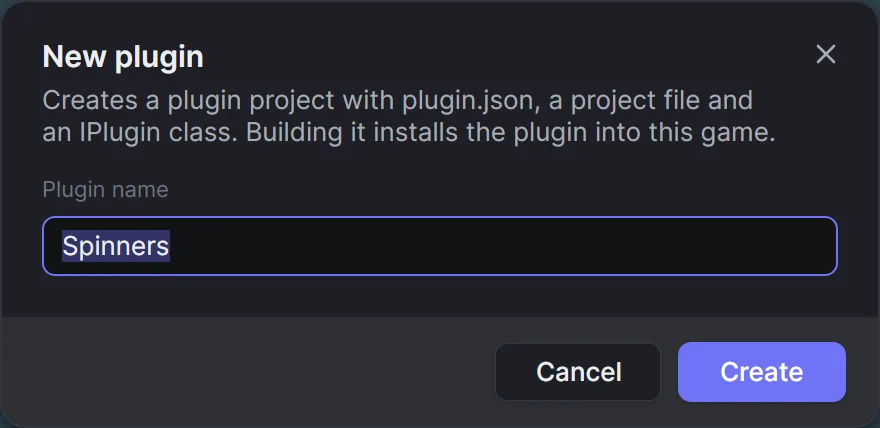

- Click the + button at the top of the panel (New plugin project…).
- Type
Spinnersas the plugin name and click Create.
The editor writes three files into plugins-src/Spinners in the project folder, next to assets, and the console links to the plugin class:
Coral Cove/
assets/
plugins-src/
Spinners/
plugin.json
Spinners.csproj
SpinnersPlugin.cs
plugins-src is outside the asset folder, so the editor does not treat the source as assets and builds do not ship it.
The generated plugin.json gives the plugin an id made of the project's name and the plugin's name, and declares the runtimeScene permission, which a plugin needs to add systems:
{
"id": "coral-cove.spinners",
"name": "Spinners",
"version": "1.0.0",
"description": "",
"authors": [
"dylan"
],
"assembly": "Spinners.dll",
"contractVersion": 1,
"permissions": [
"runtimeScene"
],
"extensions": [
"systems"
]
}
The project file references the engine assemblies in the editor's folder without copying them, and installs the plugin into the game after each build, together with any NuGet packages you add later. The real file has one Reference per engine assembly with the full path of your editor's folder; two are shown here:
<Project Sdk="Microsoft.NET.Sdk">
<PropertyGroup>
<TargetFramework>net10.0</TargetFramework>
<Nullable>enable</Nullable>
<ImplicitUsings>enable</ImplicitUsings>
<EnableDynamicLoading>true</EnableDynamicLoading>
<ImportDirectoryBuildProps>false</ImportDirectoryBuildProps>
<ManagePackageVersionsCentrally>false</ManagePackageVersionsCentrally>
<PluginDestination>$(MSBuildThisFileDirectory)../../assets/plugins/spinners/</PluginDestination>
</PropertyGroup>
<ItemGroup>
<Reference Include="Talesmith.Core">
<HintPath>/home/you/Talesmith/src/Talesmith.App/bin/Debug/net10.0/Talesmith.Core.dll</HintPath>
<Private>false</Private>
</Reference>
<Reference Include="Talesmith.Runtime">
<HintPath>/home/you/Talesmith/src/Talesmith.App/bin/Debug/net10.0/Talesmith.Runtime.dll</HintPath>
<Private>false</Private>
</Reference>
</ItemGroup>
<ItemGroup>
<None Include="plugin.json" CopyToOutputDirectory="PreserveNewest" />
</ItemGroup>
<!-- Copies the plugin and its private dependencies, such as NuGet packages, but not what the editor and games share with plugins. -->
<Target Name="InstallPlugin" AfterTargets="Build">
<PropertyGroup>
<HostSharedPattern>^(Talesmith|Microsoft\.Extensions|Avalonia|SkiaSharp|CommunityToolkit|System|mscorlib|netstandard|HarfBuzzSharp|Silk\.NET)(\.|$)</HostSharedPattern>
</PropertyGroup>
<ItemGroup>
<PluginFiles Include="$(TargetDir)$(TargetName).dll;$(TargetDir)$(TargetName).pdb;$(TargetDir)$(TargetName).deps.json;$(TargetDir)plugin.json" />
<PluginDependencies Include="@(ReferenceCopyLocalPaths)" Condition="!$([System.Text.RegularExpressions.Regex]::IsMatch('%(ReferenceCopyLocalPaths.Filename)', '$(HostSharedPattern)')) And !$([System.Text.RegularExpressions.Regex]::IsMatch('%(ReferenceCopyLocalPaths.NuGetPackageId)', '$(HostSharedPattern)'))" />
</ItemGroup>
<Copy SourceFiles="@(PluginFiles)" DestinationFolder="$(PluginDestination)" SkipUnchangedFiles="true" />
<Copy SourceFiles="@(PluginDependencies)" DestinationFiles="@(PluginDependencies->'$(PluginDestination)%(DestinationSubDirectory)%(Filename)%(Extension)')" SkipUnchangedFiles="true" />
</Target>
</Project>
The project file explains each line. SpinnersPlugin.cs holds a plugin class that registers an empty system. You replace it in the next steps.
Write the component
A component is a plain struct. The [Component] attribute names the group it appears in under Add component and its icon; [Range] gives the inspector a slider and [Tooltip] explains the field. Create Spinner.cs:
using Talesmith.Authoring;
namespace Spinners;
[Component(Category = "Motion", Icon = "rotate-cw", Description = "Turns the entity at a constant speed.")]
public struct Spinner
{
[Range(-720, 720)]
[Tooltip("Degrees per second. Negative values turn counterclockwise.")]
public float Speed;
public Spinner()
{
Speed = 90;
}
}
The constructor sets the value a newly added Spinner starts with. Scenes save the component under its full type name, Spinners.Spinner, and its field as speed.
Write the system
A system runs every frame over the entities that have the components it asks for. Entities at the top of the hierarchy have only a Transform; children also have a LocalTransform, from which the engine computes their Transform later in the frame, so the system turns whichever one is the source. Create SpinSystem.cs:
using Talesmith.Ecs;
using Talesmith.Runtime.Components;
using Talesmith.Systems;
namespace Spinners;
[UpdateIn(SystemPhase.Update)]
public sealed class SpinSystem : ISystem
{
private static readonly QueryDescription TopLevel = QueryDescription.With<Spinner>().And<Transform>().Without<LocalTransform>();
private static readonly QueryDescription Children = QueryDescription.With<Spinner>().And<LocalTransform>();
public void Update(in SystemContext context)
{
var radians = context.Time.DeltaTime * MathF.PI / 180;
foreach (var archetype in context.World.Query(TopLevel))
{
var spinners = archetype.GetSpan<Spinner>();
var transforms = archetype.GetSpan<Transform>();
for (var i = 0; i < archetype.Count; i++)
transforms[i].Rotation += spinners[i].Speed * radians;
}
foreach (var archetype in context.World.Query(Children))
{
var spinners = archetype.GetSpan<Spinner>();
var locals = archetype.GetSpan<LocalTransform>();
for (var i = 0; i < archetype.Count; i++)
locals[i].Rotation += spinners[i].Speed * radians;
}
}
}
Systems in the Update phase run only while the game plays, not in the editor's scene viewport. Systems and components covers phases, ordering and execution modes.
Register them
Replace the contents of SpinnersPlugin.cs. AddComponent makes the component available to scenes, prefabs and the Add component menu; AddSystem adds the system to every scene:
using Microsoft.Extensions.DependencyInjection;
using Talesmith.Authoring;
using Talesmith.Plugins;
using Talesmith.Systems;
namespace Spinners;
public sealed class SpinnersPlugin : IPlugin
{
public void Configure(IPluginBuilder builder)
{
builder.Services.AddComponent<Spinner>();
builder.Services.AddSystem<SpinSystem>();
}
}
Then fill in the description in plugin.json and list what the plugin extends. The extensions list is shown on the plugin's card; it does not change what loads.
{
"id": "coral-cove.spinners",
"name": "Spinners",
"version": "1.0.0",
"description": "Turns entities with a Spinner component.",
"authors": [
"dylan"
],
"assembly": "Spinners.dll",
"contractVersion": 1,
"permissions": [
"runtimeScene"
],
"extensions": [
"components",
"systems"
]
}
Build it into the game
Run the build from the project folder:
cd "Coral Cove"
dotnet build plugins-src/Spinners
The build ends with Build succeeded. and the InstallPlugin step copies four files into the game:
Coral Cove/assets/plugins/spinners/
plugin.json
Spinners.dll
Spinners.deps.json
Spinners.pdb
Load it in the editor

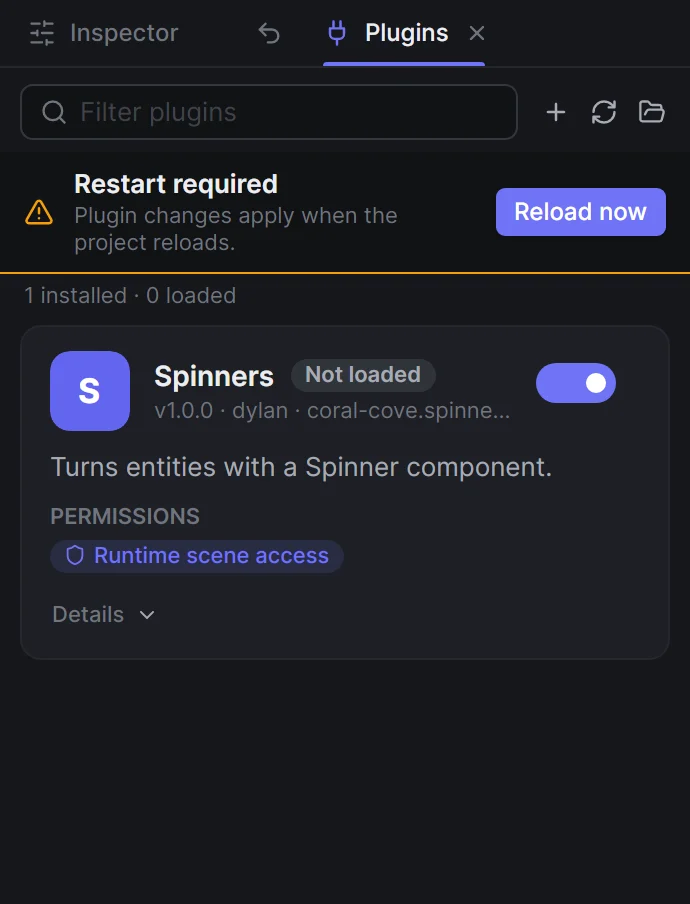

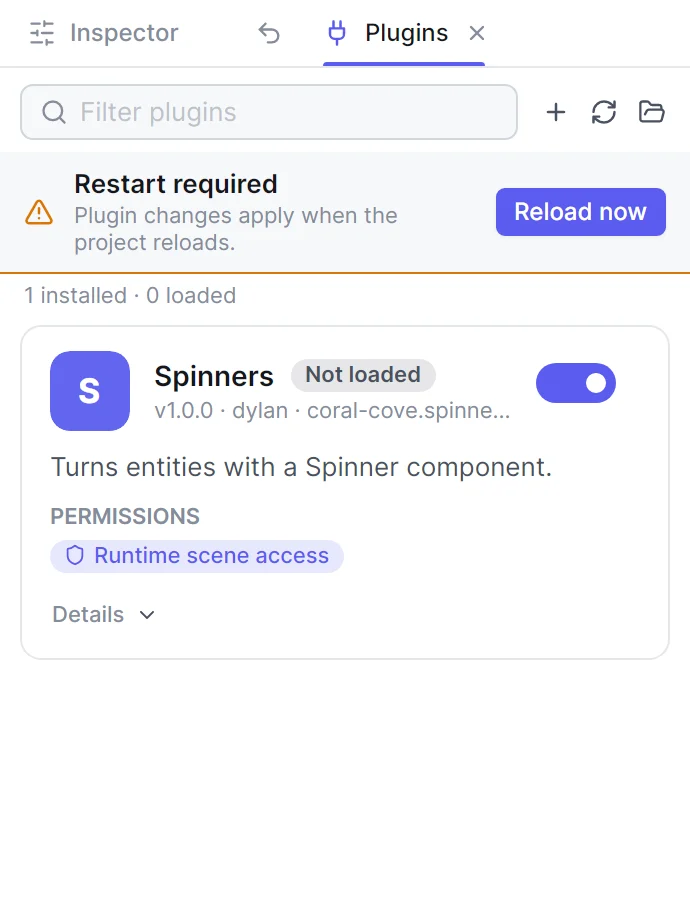

- In the Plugins panel, click the refresh button (Rescan the plugins folder). A Spinners card appears with the state Not loaded, and a Restart required bar appears at the top of the panel: plugins load when the project opens.
- Click Reload now. The editor saves or asks about unsaved changes, then reopens the project. The card now shows Loaded, a green badge, and the Runtime scene access permission.
- Select Coin 9 in the Hierarchy (inside Coins).

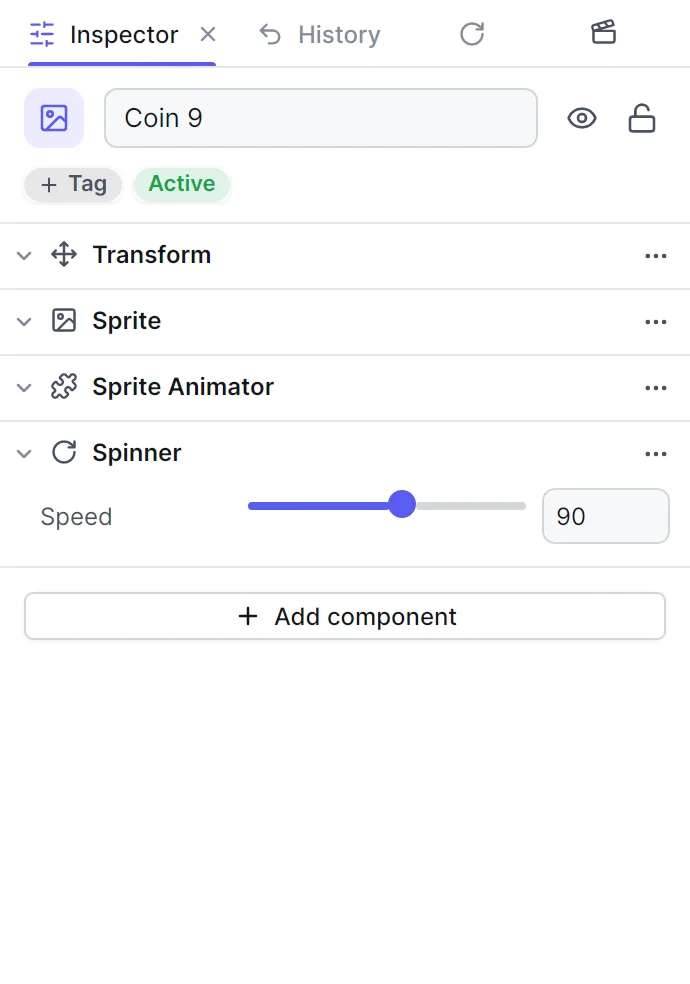

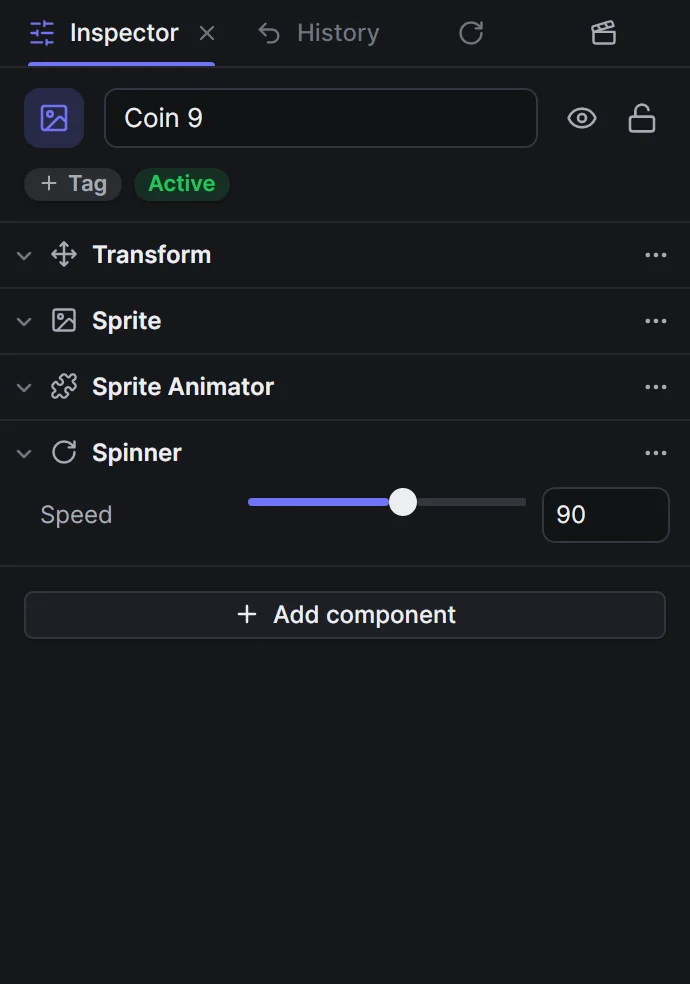

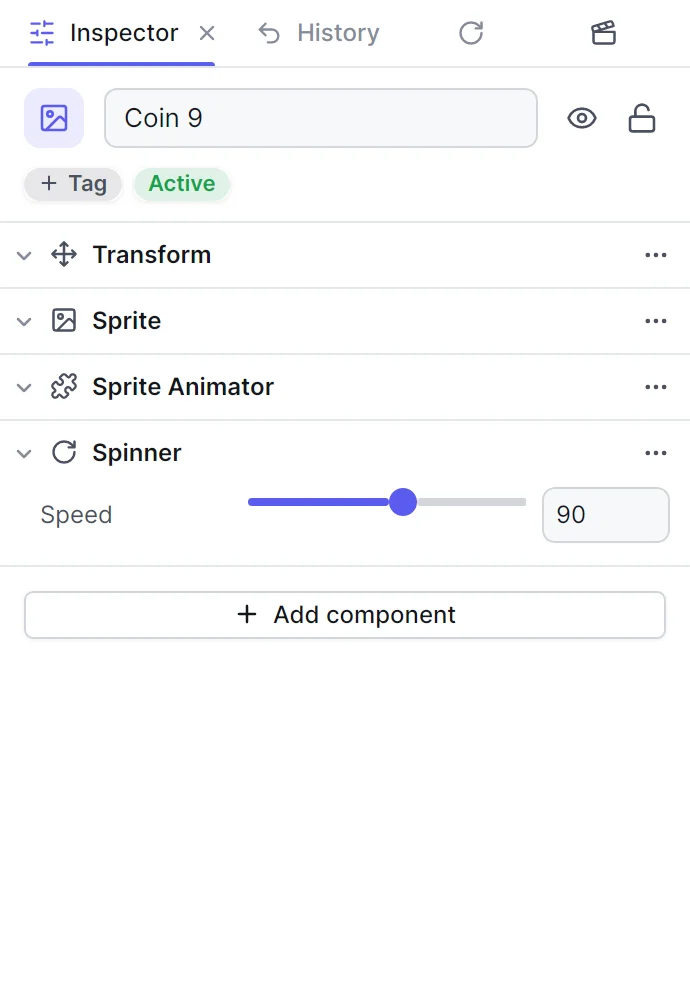

- Click Add component at the bottom of the inspector, type
spinand choose Spinner. The inspector shows the Spinner section with a Speed slider at 90.
Press CtrlP to play. The coin turns a quarter turn per second in the Game panel. Stop with CtrlP again, set Speed to -360 and play again: it turns the other way, once per second. Save the scene with CtrlS.
Run it outside the editor
Exported games load the same plugin folder. You can check without exporting: the player runs a project folder directly. From the Talesmith repository folder:
dotnet run --project src/Talesmith.Player -- "/path/to/Coral Cove"
The game window opens with the coin turning, and the log names the plugin:
info: Talesmith.Avalonia.Hosting.GameSession[1] Loaded plugin coral-cove.spinners 1.0.0 from /path/to/Coral Cove/assets/plugins/spinners
info: Talesmith.Avalonia.Hosting.GameSession[4] Plugins: 1 loaded, 0 failed, 0 skipped, 0 disabled
To check without a window, add --benchmark --no-render --frames 120. The player runs 120 frames headlessly and prints a report in which Systems/SpinSystem appears next to the engine's systems. When you export the game, the build log lists Shipping the plugin Spinners 1.0.0.
Switch it off and on
- Turn off the switch on the Spinners card. The editor writes the choice to
assets/config/plugins.jsonand asks whether to reload the project now. - Click Reload now. The card shows Disabled.
- Select Coin 9 again. The inspector shows Unknown component: Spinner with the message No plugin or script defines Spinners.Spinner. Its data is kept and saved unchanged. Play mode runs without it, and the coin no longer turns.
- Turn the switch back on and reload. The component and its speed are back.
Switching a plugin off changes only this project. The plugin's folder stays where it is.
Change the code
Edit the plugin, then build it again with dotnet build plugins-src/Spinners; the editor can stay open, because it loaded the plugin into memory and does not lock its files. The editor keeps running the copy it loaded, so click Rescan the plugins folder: the Restart required bar appears because the assembly changed. Click Reload now to load the new build. Debugging and reloading covers breakpoints and what a reload keeps.
Make the project by hand
The New plugin project… button is a shortcut; a plugin project is an ordinary class library. To start without the editor, make a folder such as plugins-src/Spinners, put the three .cs files and plugin.json from above in it, and add this project file, with TalesmithDir pointing to the folder of your editor build:
<Project Sdk="Microsoft.NET.Sdk">
<PropertyGroup>
<TargetFramework>net10.0</TargetFramework>
<Nullable>enable</Nullable>
<ImplicitUsings>enable</ImplicitUsings>
<EnableDynamicLoading>true</EnableDynamicLoading>
<ImportDirectoryBuildProps>false</ImportDirectoryBuildProps>
<ManagePackageVersionsCentrally>false</ManagePackageVersionsCentrally>
<TalesmithDir>/home/you/Talesmith/src/Talesmith.App/bin/Debug/net10.0/</TalesmithDir>
<PluginDestination>$(MSBuildThisFileDirectory)../../assets/plugins/spinners/</PluginDestination>
</PropertyGroup>
<ItemGroup>
<Reference Include="$(TalesmithDir)Talesmith.Core.dll;$(TalesmithDir)Talesmith.Runtime.dll;$(TalesmithDir)Talesmith.Plugins.dll" Private="false" />
<Reference Include="$(TalesmithDir)Talesmith.Assets.dll;$(TalesmithDir)Talesmith.Rendering.dll" Private="false" />
<Reference Include="$(TalesmithDir)Microsoft.Extensions.DependencyInjection.Abstractions.dll" Private="false" />
</ItemGroup>
<ItemGroup>
<None Include="plugin.json" CopyToOutputDirectory="PreserveNewest" />
</ItemGroup>
<!-- Copies the plugin and its private dependencies, such as NuGet packages, but not what the editor and games share with plugins. -->
<Target Name="InstallPlugin" AfterTargets="Build">
<PropertyGroup>
<HostSharedPattern>^(Talesmith|Microsoft\.Extensions|Avalonia|SkiaSharp|CommunityToolkit|System|mscorlib|netstandard|HarfBuzzSharp|Silk\.NET)(\.|$)</HostSharedPattern>
</PropertyGroup>
<ItemGroup>
<PluginFiles Include="$(TargetDir)$(TargetName).dll;$(TargetDir)$(TargetName).pdb;$(TargetDir)$(TargetName).deps.json;$(TargetDir)plugin.json" />
<PluginDependencies Include="@(ReferenceCopyLocalPaths)" Condition="!$([System.Text.RegularExpressions.Regex]::IsMatch('%(ReferenceCopyLocalPaths.Filename)', '$(HostSharedPattern)')) And !$([System.Text.RegularExpressions.Regex]::IsMatch('%(ReferenceCopyLocalPaths.NuGetPackageId)', '$(HostSharedPattern)'))" />
</ItemGroup>
<Copy SourceFiles="@(PluginFiles)" DestinationFolder="$(PluginDestination)" SkipUnchangedFiles="true" />
<Copy SourceFiles="@(PluginDependencies)" DestinationFiles="@(PluginDependencies->'$(PluginDestination)%(DestinationSubDirectory)%(Filename)%(Extension)')" SkipUnchangedFiles="true" />
</Target>
</Project>
dotnet build installs it exactly as before. The contractVersion in plugin.json must match the engine's (it is 1); the editor's scaffold fills it in for you.
