Example: the cutscene plugin

The Hex Quest sample ships its cutscenes and dialogue as a separate plugin, samples.cutscenes, in samples/Talesmith.Samples.Cutscenes. This page walks through it file by file to show how a real plugin combines an asset importer, a player for scripted sequences, map triggers, input, an overlay and per-game state, and how it works with the gameplay plugin without depending on it.

What it does​

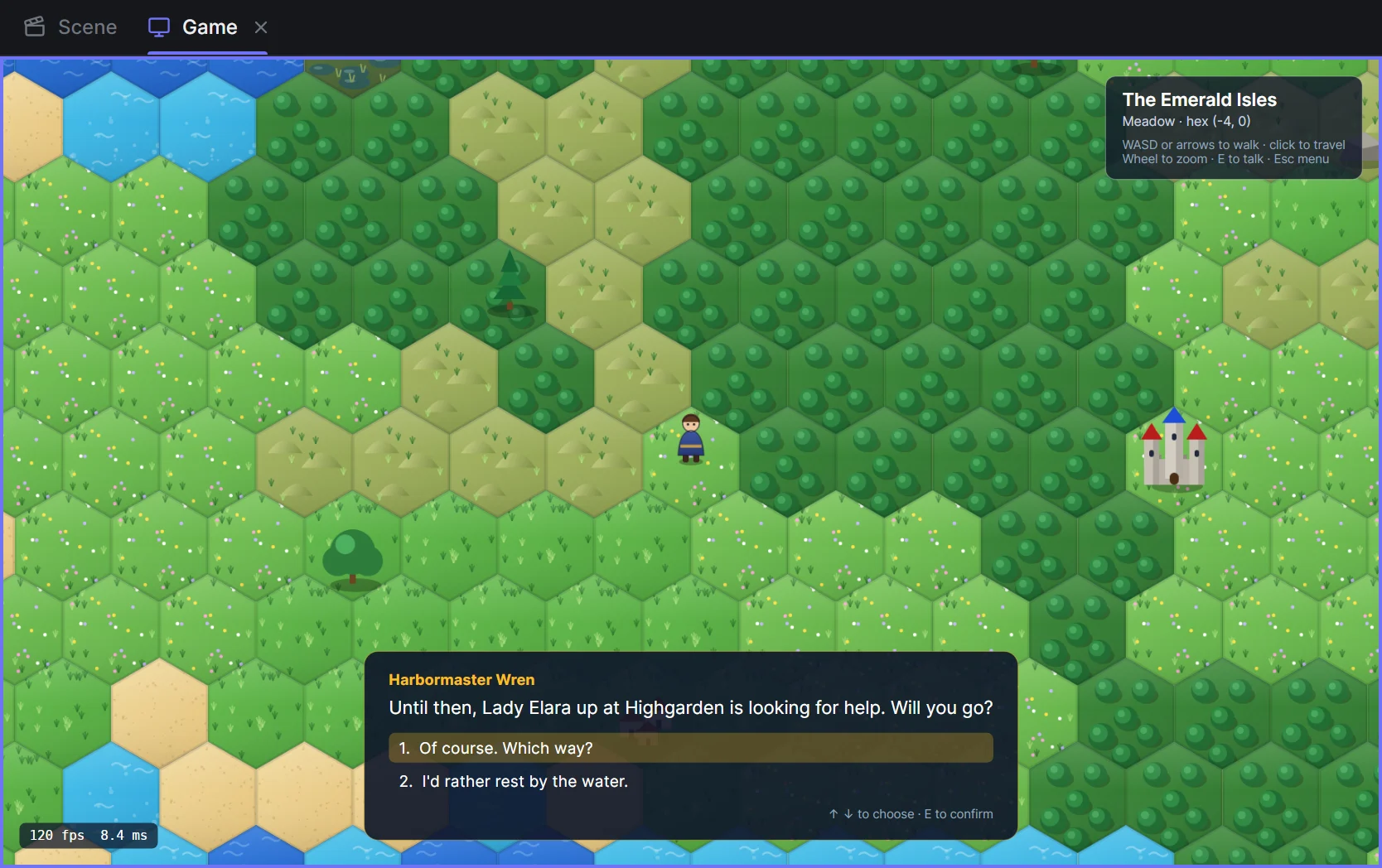

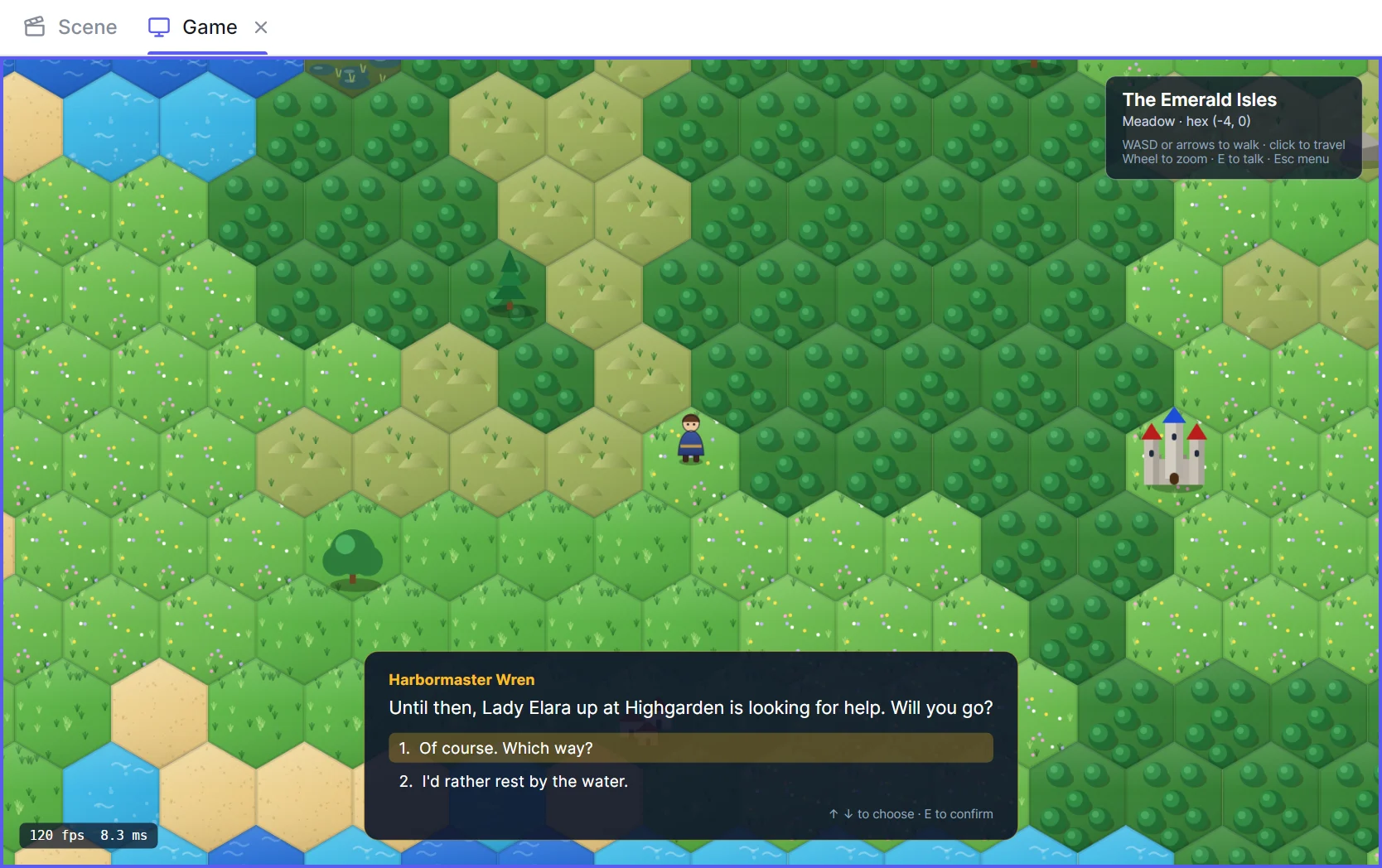

When the hero walks onto the harbor on the Emerald Isles map, the camera pans to the harbor, the harbormaster speaks, the camera pans to Highgarden and she asks a question with two answers. The answer decides the next line, then the camera returns to the hero and the player has control again. The cutscene plays once per game.

The whole sequence is a data file, assets/cutscenes/harbor-arrival.cutscene:

samples/HexQuest/assets/cutscenes/harbor-arrival.cutscene
{
  // Plays the first time the hero walks into the "Harbor" trigger on the Emerald Isles map.
  "steps": [
    { "type": "camera", "target": "Harbor", "duration": 1.4 },
    { "type": "say", "speaker": "Harbormaster Wren", "text": "Ahoy there! You must be the traveller the gulls have been squawking about." },
    { "type": "say", "speaker": "Harbormaster Wren", "text": "The ferry to the mainland left at dawn. Next one sails when the tide turns." },
    { "type": "camera", "target": "Highgarden", "duration": 1.8 },
    { "type": "choice", "speaker": "Harbormaster Wren", "text": "Until then, Lady Elara up at Highgarden is looking for help. Will you go?",
      "options": [
        { "text": "Of course. Which way?", "goto": "accept" },
        { "text": "I'd rather rest by the water.", "goto": "decline" }
      ] },
    { "type": "label", "name": "accept" },
    { "type": "say", "speaker": "Harbormaster Wren", "text": "Follow the meadow north past Millbrook. You can't miss the towers." },
    { "type": "goto", "label": "done" },
    { "type": "label", "name": "decline" },
    { "type": "say", "speaker": "Harbormaster Wren", "text": "Suit yourself. The offer stands while the tide's out." },
    { "type": "label", "name": "done" },
    { "type": "cameraBack", "duration": 1.2 }
  ]
}

On the map, the harbor is a trigger object named Harbor with a string property cutscene set to harbor-arrival. The camera targets are map objects too.

The project and the manifest​

The project imports samples/Plugin.targets, which installs it into samples/HexQuest/assets/plugins/cutscenes, and references the engine at compile time only:

samples/Talesmith.Samples.Cutscenes/Talesmith.Samples.Cutscenes.csproj
<Project Sdk="Microsoft.NET.Sdk">
  <PropertyGroup>
    <Description>A cutscene and dialogue plugin: scripted camera moves, dialogue with choices and a dialogue overlay, started by map triggers.</Description>
    <PluginFolder>cutscenes</PluginFolder>
  </PropertyGroup>
  <Import Project="..\Plugin.targets" />
  <ItemGroup>
    <ProjectReference Include="..\..\src\Talesmith.Runtime\Talesmith.Runtime.csproj" Private="false" ExcludeAssets="runtime" />
    <ProjectReference Include="..\..\src\Talesmith.Avalonia\Talesmith.Avalonia.csproj" Private="false" ExcludeAssets="runtime" />
  </ItemGroup>
</Project>

Talesmith.Avalonia is there for the overlay. The manifest declares runtimeScene, because the plugin adds a system and a scene listener, and lists what it extends:

samples/Talesmith.Samples.Cutscenes/plugin.json
{
  "id": "samples.cutscenes",
  "name": "Cutscenes and dialogue",
  "version": "1.0.0",
  "description": "Plays scripted cutscenes with camera moves and dialogue choices when the player enters a map trigger with a 'cutscene' property.",
  "authors": [ "Talesmith" ],
  "assembly": "Talesmith.Samples.Cutscenes.dll",
  "contractVersion": 1,
  "minEngineVersion": "0.1.0",
  "permissions": [ "runtimeScene" ],
  "extensions": [ "importers", "systems", "scene.listeners", "overlays", "services" ]
}

It has no dependencies: nothing in it refers to the gameplay plugin.

CutscenesPlugin: what it registers​

samples/Talesmith.Samples.Cutscenes/CutscenesPlugin.cs
public sealed class CutscenesPlugin : IPlugin
{
    public void Configure(IPluginBuilder builder)
    {
        var services = builder.Services;
        services.AddSingleton<IAssetImporter, CutsceneImporter>();
        services.AddSingleton<DialogueState>();
        services.AddSingleton<CutsceneJournal>();
        services.AddSingleton<CutscenePlayer>();
        services.AddSingleton<IGameOverlay, DialogueOverlay>();
        services.AddSystem<DialogueInputSystem>();
        services.AddSceneListener<CutsceneTriggers>();
    }
}
RegistrationRole
CutsceneImporterLoads .cutscene files as CutsceneScripts.
DialogueStateThe dialogue on screen; the one place that changes it. Singleton, so it lasts across scenes.
CutsceneJournalWhich cutscenes have played this game.
CutscenePlayerRuns a script's steps.
DialogueOverlayDraws the dialogue box above the game.
DialogueInputSystemReveals text over time and reads the keys that continue and choose.
CutsceneTriggersStarts cutscenes when the hero enters a trigger. Created per scene.

CutsceneScript and CutsceneImporter: the asset type​

CutsceneScript is a record with a list of steps, read with System.Text.Json. Each step type is a record, chosen in the file by its "type":

samples/Talesmith.Samples.Cutscenes/CutsceneScript.cs (part)
[JsonPolymorphic(TypeDiscriminatorPropertyName = "type")]
[JsonDerivedType(typeof(SayStep), "say")]
[JsonDerivedType(typeof(ChoiceStep), "choice")]
[JsonDerivedType(typeof(CameraStep), "camera")]
[JsonDerivedType(typeof(CameraBackStep), "cameraBack")]
[JsonDerivedType(typeof(WaitStep), "wait")]
[JsonDerivedType(typeof(SoundStep), "sound")]
[JsonDerivedType(typeof(LabelStep), "label")]
[JsonDerivedType(typeof(GotoStep), "goto")]
[JsonDerivedType(typeof(EndStep), "end")]
public abstract record CutsceneStep;

public sealed record SayStep(string Speaker, string Text) : CutsceneStep;

public sealed record ChoiceStep(string Speaker, string Text, IReadOnlyList<ChoiceOption> Options) : CutsceneStep;

public sealed record CameraStep(string Target, float Duration = 1.2f) : CutsceneStep;

The script also builds a Labels dictionary from each label name to its step index, for goto and choices. CutsceneImporter is the importer shown in Asset importers: it opens the file through the import context, parses it, and turns a JsonException into an AssetException that names the file. Because the importer reads through the context, the same code works on loose files in the editor and inside an exported game's pack.

CutscenePlayer and DialogueState​

CutscenePlayer plays a script as one async method. Each step awaits what it waits for: a line awaits the player continuing, a camera pan awaits a tween, a wait awaits the game scheduler:

samples/Talesmith.Samples.Cutscenes/CutscenePlayer.cs (part)
public sealed class CutscenePlayer(DialogueState dialogue, PlayerControl control, ITweenService tweens, IGameScheduler scheduler, IAssetManager assets,
    IAudioService audio)
{
    public bool IsPlaying { get; private set; }

    public async Task PlayAsync(CutsceneScript script, World world, CancellationToken cancellationToken = default)
    {
        if (IsPlaying)
            throw new InvalidOperationException("A cutscene is already playing.");

        IsPlaying = true;
        using var suspension = control.Suspend("cutscene");
        var camera = new CameraDirector(world, tweens);
        try
        {
            var index = 0;
            while (index < script.Steps.Count)
            {
                cancellationToken.ThrowIfCancellationRequested();
                index = await RunAsync(script, script.Steps[index], index, world, camera, cancellationToken);
            }
        }
        finally
        {
            dialogue.Close();
            camera.Release();
            IsPlaying = false;
        }
    }
  • control.Suspend("cutscene") takes control away from the player until the cutscene ends, whichever way it ends. PlayerControl is an engine service; the gameplay plugin's movement checks control.IsSuspended.
  • RunAsync handles one step and returns the index of the next, which is how goto and choices jump.
  • CameraDirector takes the camera off its target (Camera.Target, the hero), moves it with ITweenService.To, and gives the target back in Release.
  • The game's code continues on the game thread after each await, so the player can change the world directly. The engine runs async continuations on the game thread at the start of a frame.

DialogueState is the dialogue on screen. SayAsync and ChooseAsync show a line and return a task that completes when the player continues or chooses; the input system calls Advance, MoveSelection and Choose; Tick reveals the text at 45 characters per second. Everything the overlay needs is published as an immutable DialogueView through a ViewState<DialogueView>:

samples/Talesmith.Samples.Cutscenes/DialogueState.cs (part)
public sealed record DialogueView(bool IsOpen, string Speaker, string Text, int VisibleLength, IReadOnlyList<string> Options, int SelectedOption)
{
    public static readonly DialogueView Closed = new(false, string.Empty, string.Empty, 0, [], 0);

    public bool IsFullyRevealed => VisibleLength >= Text.Length;

    public string VisibleText => Text[..Math.Min(VisibleLength, Text.Length)];
}

public sealed class DialogueState(IGameUi ui)
{
    public ViewState<DialogueView> View { get; } = new(ui, DialogueView.Closed);

    public Task SayAsync(string speaker, string text) => Show(speaker, text, []);

    public Task<int> ChooseAsync(string speaker, string text, IReadOnlyList<string> options) => Show(speaker, text, options);

Pending lines are TaskCompletionSources: Close cancels them, so a cutscene interrupted by a scene change ends cleanly.

CutsceneTriggers: starting cutscenes from map objects​

The engine's trigger system raises TriggerEntered when an entity with a TriggerActivator enters a trigger area from the map. CutsceneTriggers is a scene listener that listens for it while a scene is active:

samples/Talesmith.Samples.Cutscenes/CutsceneTriggers.cs (part)
public sealed partial class CutsceneTriggers(IEventBus events, IAssetManager assets, CutscenePlayer player, CutsceneJournal journal, ILogger<CutsceneTriggers> logger)
    : ISceneListener, IDisposable
{
    public const string CutsceneProperty = "cutscene";
    public const string RepeatProperty = "repeat";

    public void OnSceneStarted(Scene scene)
    {
        _scene = scene;
        _cancellation = new CancellationTokenSource();
        _subscription = events.Subscribe<TriggerEntered>(OnTriggerEntered);
    }

    public void OnSceneStopping(Scene scene) => Dispose();

    private void OnTriggerEntered(ref TriggerEntered e)
    {
        var name = e.Area.Properties.GetString(CutsceneProperty);
        if (string.IsNullOrWhiteSpace(name) || player.IsPlaying || _scene is null)
            return;
        if (!e.Area.Properties.GetBool(RepeatProperty) && !journal.MarkPlayed(name))
            return;
        _ = PlayAsync(name, _scene, _cancellation!.Token);
    }
  • The trigger's map properties decide everything: cutscene names the file, cutscenes/<name>.cutscene, and repeat lets a cutscene play every time.
  • CutsceneJournal.MarkPlayed returns false for a cutscene that already played, so one-time cutscenes do not repeat. The journal is a singleton, so this holds across scenes for the whole game.
  • When the scene stops, Dispose unsubscribes and cancels the cutscene in progress.
  • PlayAsync loads the script with assets.LoadAsync<CutsceneScript>, plays it, and logs a failure with a [LoggerMessage] method instead of letting it vanish in a discarded task.

Because the file name is built as $"cutscenes/{name}{CutsceneScript.Extension}", builds include the whole cutscenes folder: the literal cutscenes/ in the plugin's code names it. See Plugins in exported games.

DialogueInputSystem and DialogueOverlay​

DialogueInputSystem runs in PreUpdate while the dialogue is open. It reveals text with the unscaled frame time, so dialogue still reveals while game time is slowed, moves the selection with the arrow keys and W/S, picks an option with the number keys, and continues with the game's Interact action from config/input.json:

samples/Talesmith.Samples.Cutscenes/DialogueInputSystem.cs
[UpdateIn(SystemPhase.PreUpdate)]
public sealed class DialogueInputSystem(DialogueState dialogue, IInputService input) : ISystem
{
    public void Update(in SystemContext context)
    {
        if (!dialogue.IsOpen)
            return;

        dialogue.Tick(context.Time.UnscaledDeltaTime);
        if (input.WasPressed(Key.Up) || input.WasPressed(Key.W))
            dialogue.MoveSelection(-1);
        if (input.WasPressed(Key.Down) || input.WasPressed(Key.S))
            dialogue.MoveSelection(1);
        for (var i = 0; i < 9; i++)
        {
            if (input.WasPressed(Key.D1 + i))
                dialogue.Choose(i);
        }

        if (input.Actions.TryGet("Interact", out var interact) && interact!.WasPressed)
            dialogue.Advance();
    }
}

DialogueOverlay subscribes to dialogue.View.Changed and redraws the speaker, the revealed text, the options and a hint. It never reads DialogueState's fields from the UI thread, only the published snapshot, and it does not take input. Game overlays shows its code.

CutsceneJournal​

samples/Talesmith.Samples.Cutscenes/CutsceneJournal.cs
public sealed class CutsceneJournal
{
    private readonly HashSet<string> _played = new(StringComparer.OrdinalIgnoreCase);

    public bool HasPlayed(string name) => _played.Contains(name);

    public bool MarkPlayed(string name) => _played.Add(name);
}

A plain singleton service: one per game, shared by every scene, gone when the game ends.

How the two plugins stay independent​

Hex Quest's gameplay plugin and the cutscene plugin never reference each other, and neither lists the other as a dependency. They meet only through engine contracts and the game's data:

The cutscene plugin needsProvided by
An entity that activates triggersThe gameplay plugin adds TriggerActivator to the hero it spawns.
Trigger areas with a cutscene propertyThe map, made in the editor.
A way to stop the hero during a cutsceneThe engine's PlayerControl, which the gameplay plugin's movement respects.
A camera to move and give backThe engine's Camera component, whose Target the gameplay plugin sets to the hero.
A key to continueThe game's Interact input action.

So either can be switched off on its own: without the cutscene plugin, Hex Quest plays without cutscenes; without the gameplay plugin there is no hero to enter triggers, and the cutscene plugin waits. The same plugin works in any game that gives an entity a TriggerActivator, has trigger objects with a cutscene property, uses PlayerControl and defines Interact.
