Plugins overview

A plugin is a .NET class library that the engine loads into its own load context when a game starts. It registers what it adds (systems, components, scenes, asset importers, overlays, services) and can carry a second assembly that extends the editor with panels, commands, tools and inspectors. This section shows how to write, package, test and ship plugins, from a first plugin to editor extensions.

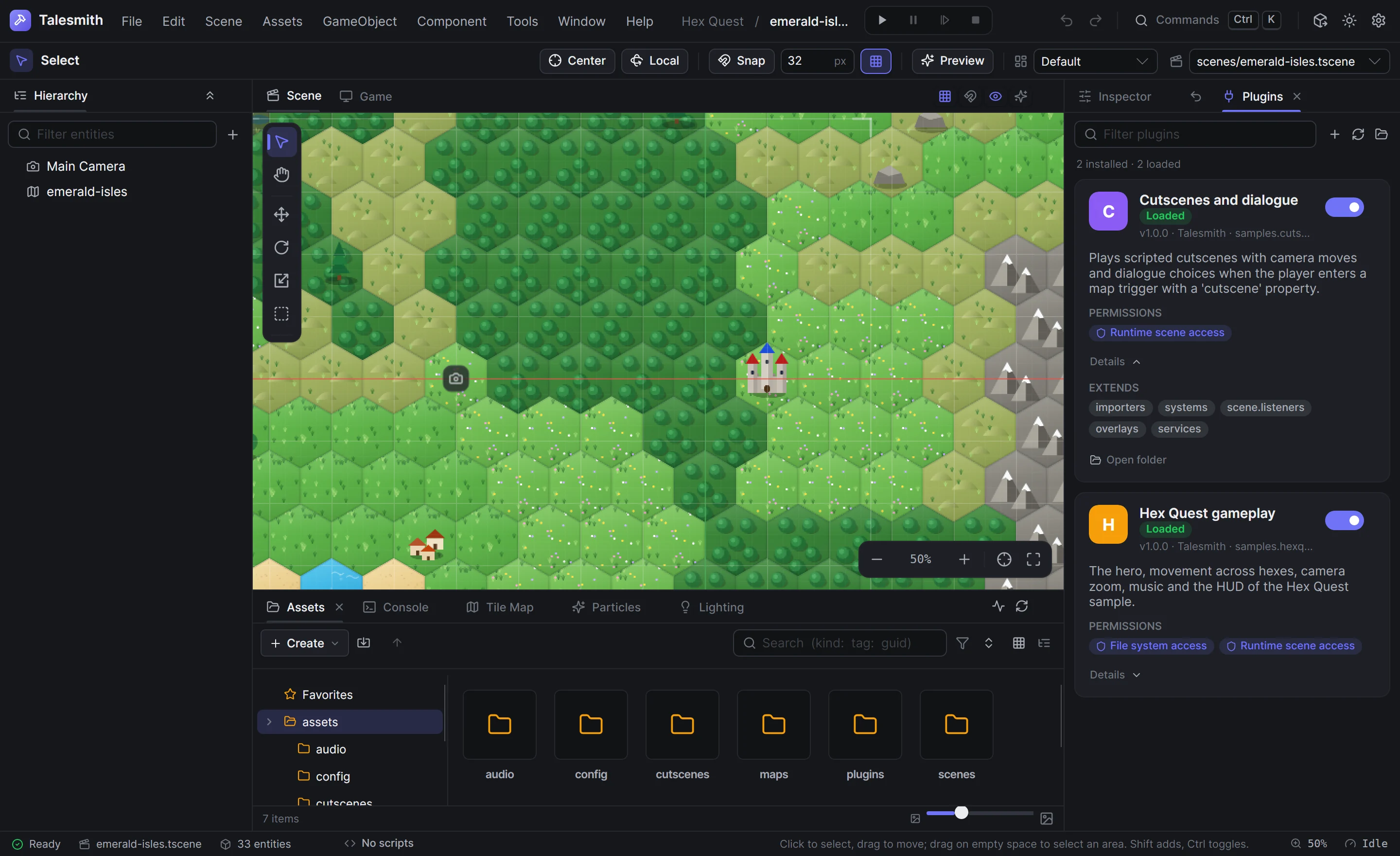

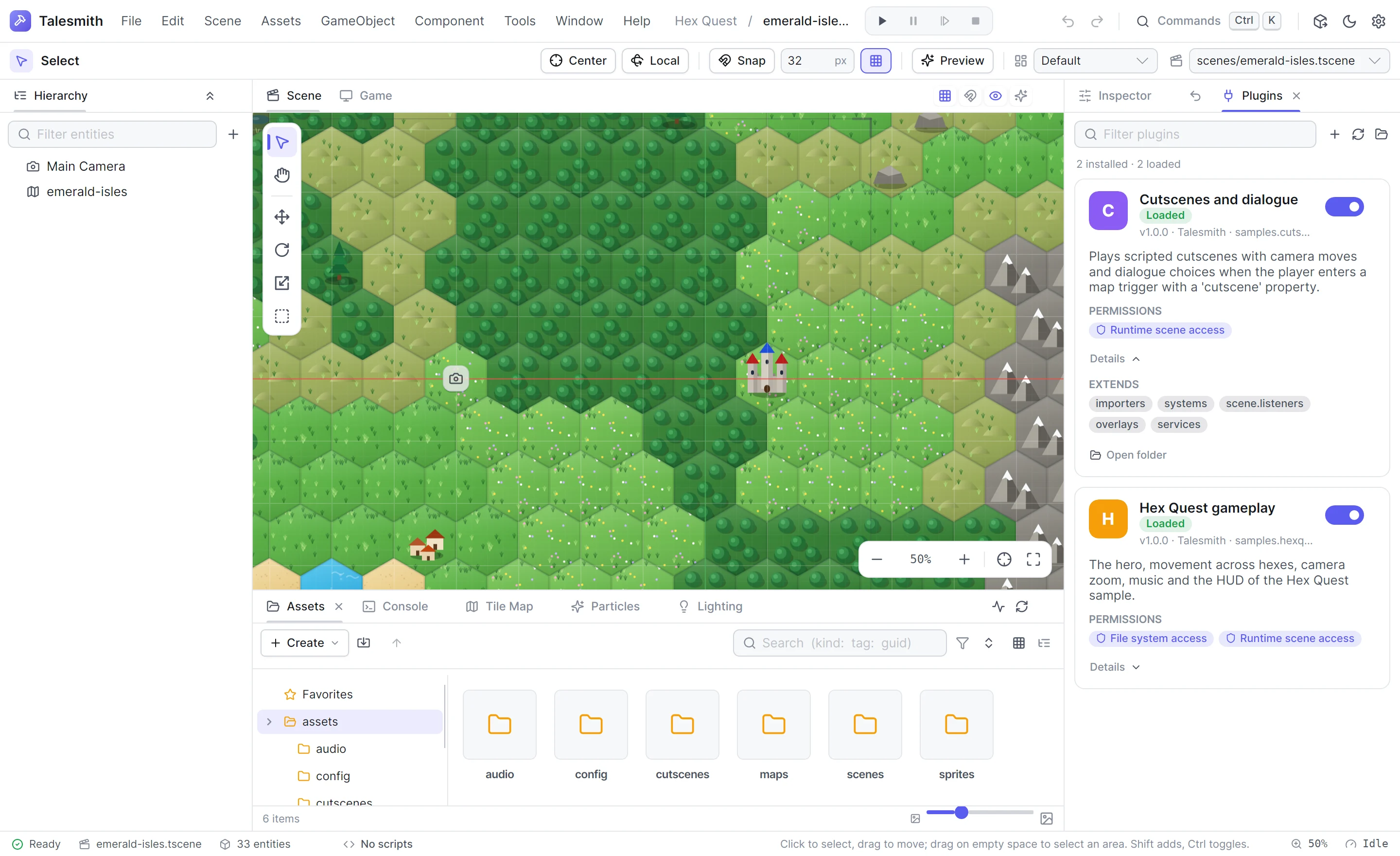

The editor with the Plugins panel open on Hex Quest: cards for the cutscene and gameplay plugins, the cutscene card expanded to show its permission and extension points — The Plugins panel in the Hex Quest sample, with its gameplay and cutscene plugins.

What a plugin is

Every plugin is a folder in the game's assets/plugins folder with three kinds of files:

plugin.json, the manifest: the plugin's id, name, version, the assemblies to load, the engine it was built for, its dependencies and the permissions it needs.
The runtime assembly, such as Spinners.dll, with exactly one public class that implements IPlugin. Games load it.
Optionally an editor assembly, such as Spinners.Editor.dll, with IEditorPlugin classes. Only the editor loads it.

IPlugin has one method. The engine calls it every time it builds a game, before the game's services exist, so a plugin only registers things:

SpinnersPlugin.cs
public sealed class SpinnersPlugin : IPlugin
{
    public void Configure(IPluginBuilder builder)
    {
        builder.Services.AddComponent<Spinner>();
        builder.Services.AddSystem<SpinSystem>();
    }
}

builder.Services is the game's dependency injection container, builder.Plugin describes the plugin itself (id, version, folder, permissions) and builder.Settings holds its settings.

Plugins or scripts

Scripts and plugins are both C#, and scripts can define ECS components and systems too. Choose by what you need:

	Scripts	Plugins
Where the code lives	`assets/scripts`, part of one game	A class library you build with `dotnet build`, installed into any number of games
Who compiles it	The editor, every time you save	You, with the .NET SDK or an IDE
Reloading	Hot reload while the game runs	Rebuild, then reload the project
Attaches to entities	Yes, through a script component	Through components the plugin registers
Editor extensions	No	Panels, commands, viewport tools, gizmos, inspectors, asset handlers
Asset importers, overlays, render and engine services	No	Yes
NuGet packages	No	Yes, each plugin with its own versions
Settings per project, dependencies on other plugins, permissions	No	Yes

Scripts compile against the installed plugins, so a script can use a plugin's components and services. A common split is engine features and tools in plugins, level-specific behavior in scripts. See Your first script for scripts.

Runtime and editor parts

The runtime assembly runs in every game: the edit game behind the scene viewport, play mode in the editor, and exported games. It must not reference editor assemblies, because exported games do not contain them.

The editor assembly runs only in the editor. It is loaded into the same load context as the runtime assembly, so it can use the runtime assembly's types, and its IEditorPlugin classes register editor features with the same calls the editor uses for its own panels and tools. See Editor plugins.

The samples

The repository's samples are built as plugins, and their code is the best place to see a pattern in use:

Plugin	Folder	What it shows
`samples.hexquest`	`samples/Talesmith.Samples.HexQuest`	Systems with hex pathfinding and camera zoom, a scene listener for music, a HUD overlay
`samples.cutscenes`	`samples/Talesmith.Samples.Cutscenes`	An asset importer, map triggers, async cutscene playback, dialogue input and an overlay. Walked through in Example: the cutscene plugin
`samples.islehopper`	`samples/Talesmith.Samples.IsleHopper`	A platformer: fixed-step physics systems, scoped per-scene state, pickups, parallax, smooth motion
