Prefabs

A prefab is a saved entity, with its children and components, that you can place many times: an enemy, a coin, a lantern, a house. Each placed copy is an instance that follows the prefab, so a change to the prefab reaches every instance. This page covers creating a prefab, placing instances, editing the prefab, and changing single instances with overrides you can apply or revert.

Create a prefab​

  1. Set up the entity in the scene, with its children and components, and give it a good name, such as Coin.
  2. Select it and choose GameObject › Prefab › Create prefab, or right-click it in the hierarchy and choose Create prefab.

The editor saves the entity and its children as assets/prefabs/Coin.tprefab, named after the entity, and turns the entity in the scene into an instance of it. If the name is taken, it adds a number: Coin 2.tprefab. With several entities selected, each becomes a prefab of its own.

The prefab's root is saved at position 0, 0; the instance keeps the entity's place in the scene. Select the prefab in the Assets panel to see what it contains in the Inspector, and which scenes use it under Used by.

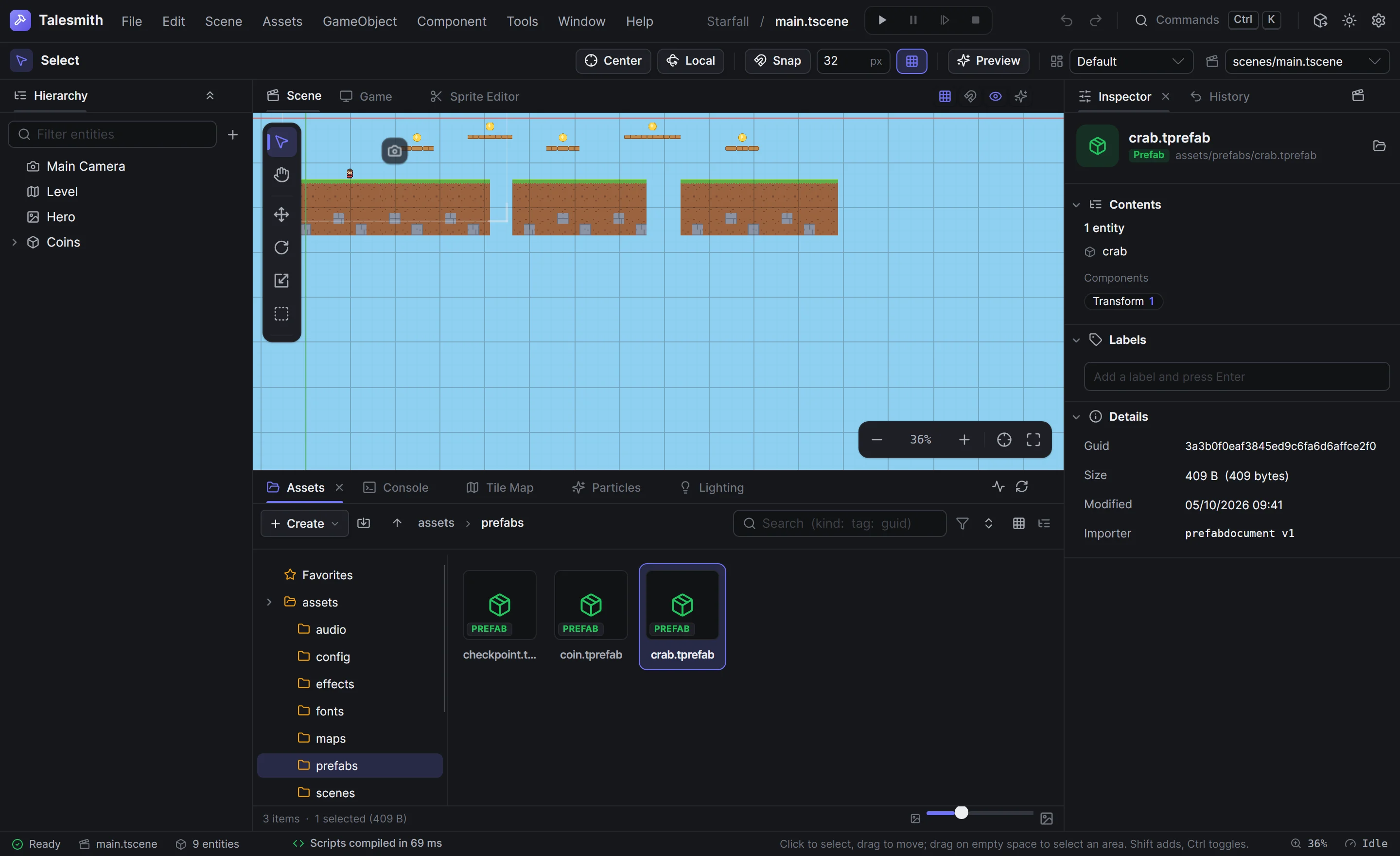

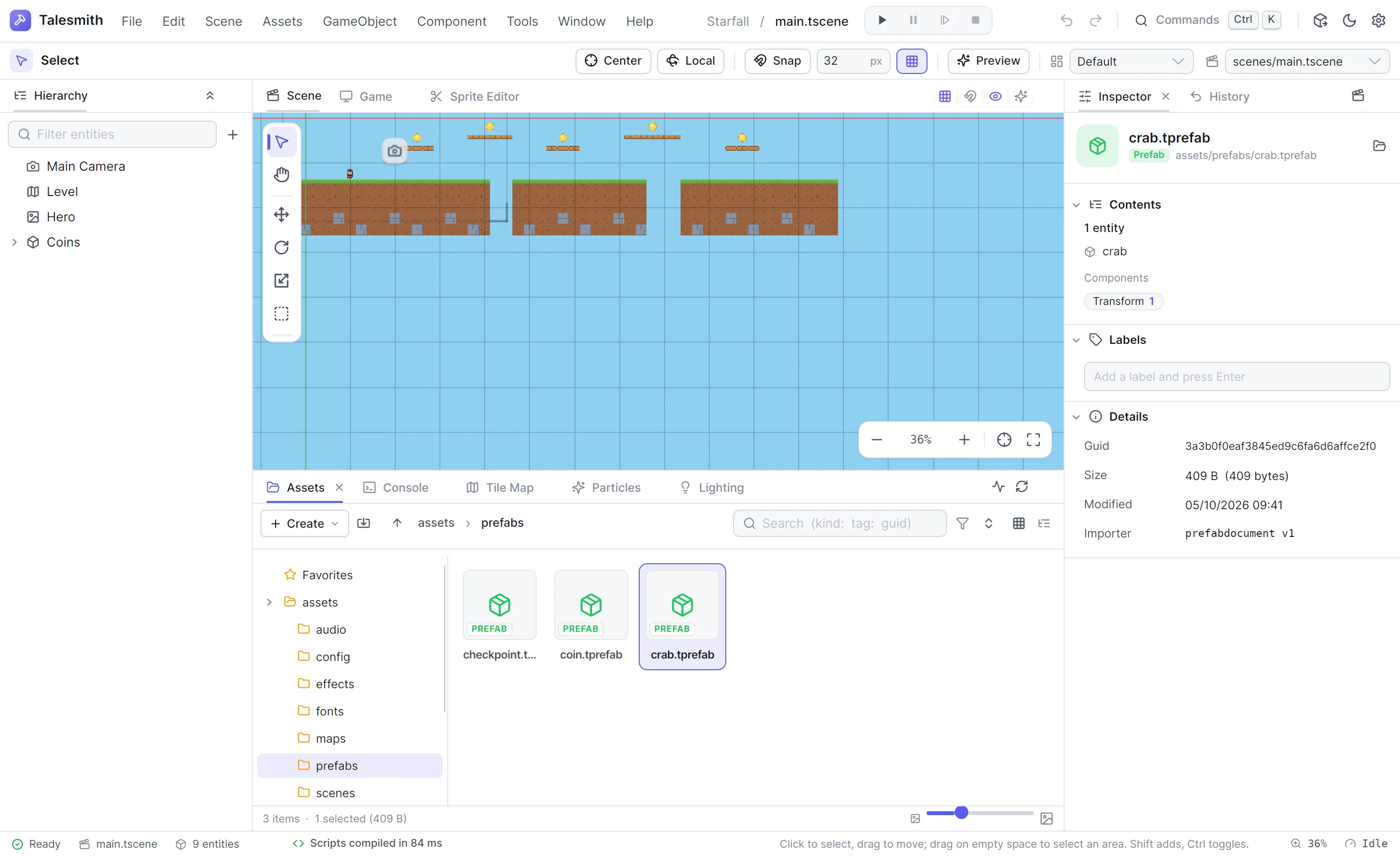

A prefab selected in the Assets panel, with its contents in the Inspector.

Place instances​

  • Drag the prefab from the Assets panel into the viewport. The instance is created where you drop it.
  • Drag it onto the hierarchy to create it under a particular entity.
  • Select the prefab in the Assets panel and choose GameObject › Prefab › Instantiate prefab to create it in the middle of the view.
  • Duplicate an instance with CtrlD.

Instances show their icon in the accent color in the hierarchy, with the prefab's entities beneath them. The Inspector's header shows a badge, Prefab: Coin, on the instance's root, and In prefab: Coin on the entities inside it.

Prefabs can contain instances of other prefabs: a house prefab can hold lantern prefabs. A prefab cannot contain itself.

Change one instance: overrides​

You can change an instance's values in the Inspector like any entity's. Each change is recorded as an override: the instance keeps its own value while every other value still follows the prefab.

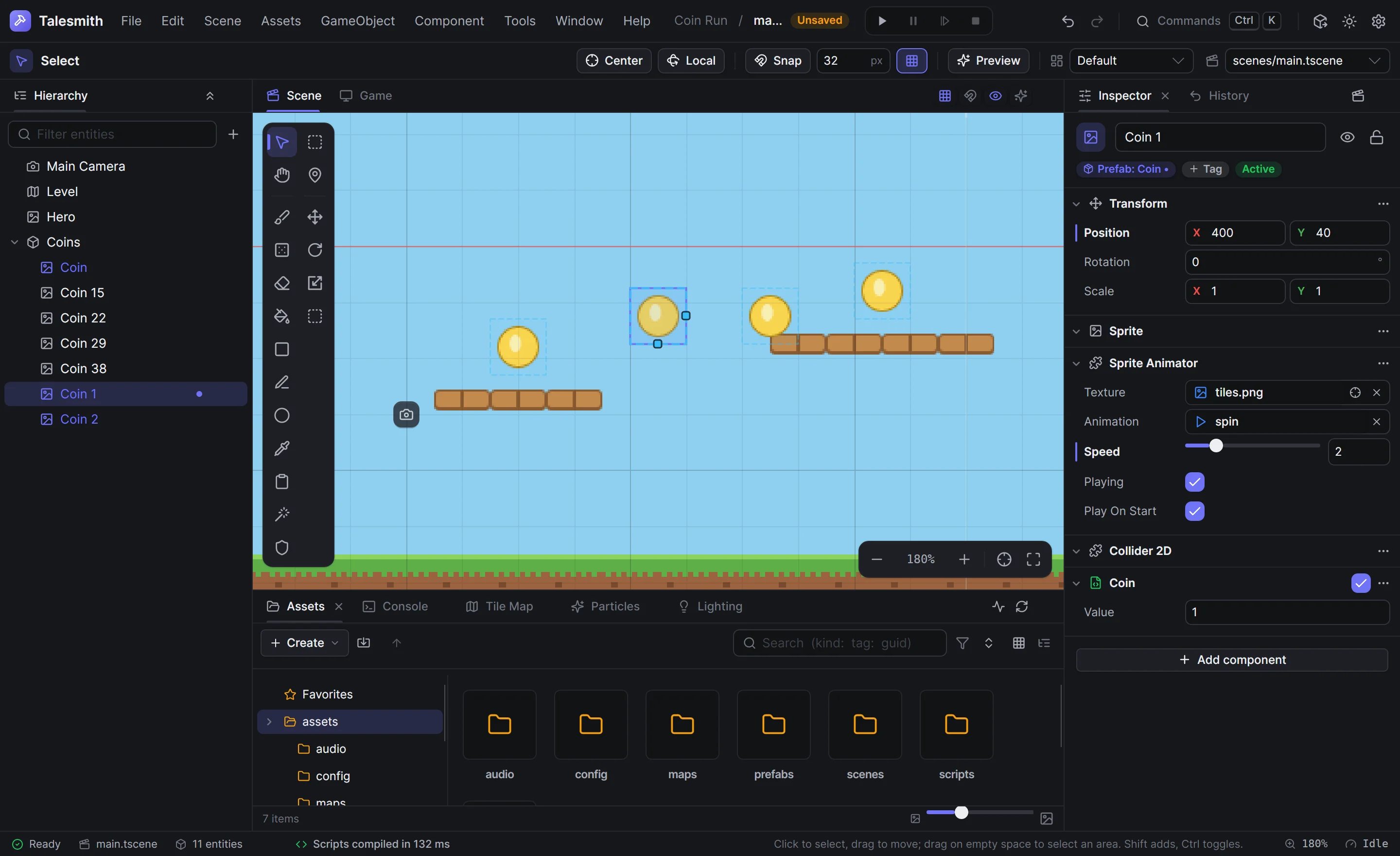

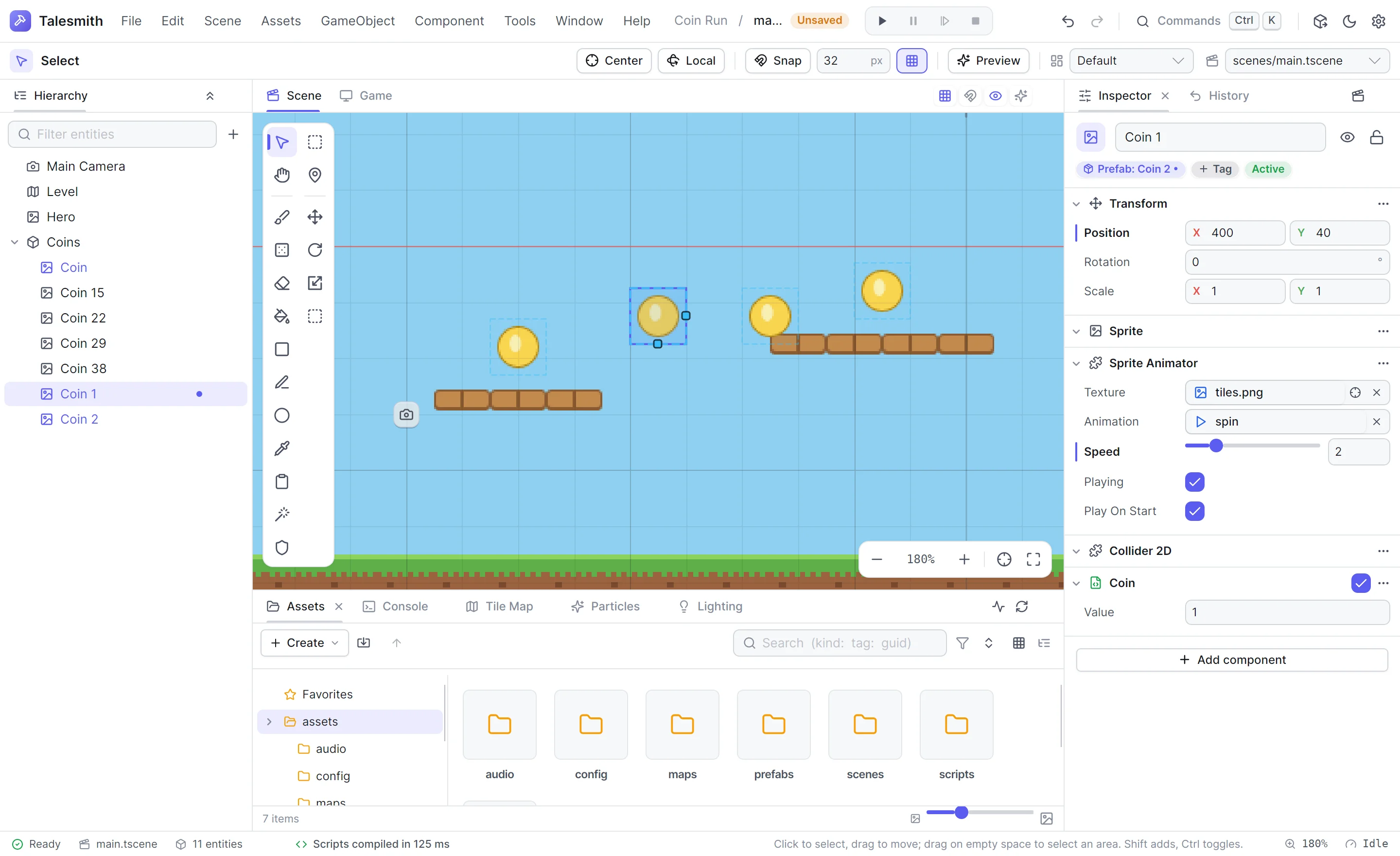

Coin 1 spins twice as fast as the other coins. The marked Speed row and the dot in the badge and the hierarchy show the override.
  • A value that differs from the prefab has a marker at the start of its row and a button that reverts that value.
  • The instance's badge ends with •, and the hierarchy shows a dot at the end of its row.
  • Revert to prefab in a component's menu drops every change to that component.

Overrides are kept when the prefab changes. If you change the prefab's speed from 1 to 3, every coin spins at 3 except Coin 1, which keeps its 2.

Apply or revert all changes​

Open the badge's menu on the instance's root, or the GameObject › Prefab menu:

CommandWhat it does
Apply overrides to prefab (Apply prefab overrides in the menu)Writes the instance's changes, including components you added or removed, into the prefab file. Every instance gets them.
Revert to prefab (Revert prefab overrides in the menu)Drops every change, so the instance matches the prefab again.

Both are undoable.

Edit a prefab​

  1. Select an instance, or the prefab in the Assets panel, and choose GameObject › Prefab › Open prefab. The badge menu on an instance has Open prefab too.
  2. The prefab replaces the scene in the editor. The hierarchy shows a breadcrumb at the top, such as main › Coin, and the viewport shows the prefab around the origin.
  3. Edit the prefab as you would edit a scene: add children and components, change values, move things.
  4. Press CtrlS to save the prefab.
  5. Click the back arrow in the breadcrumb, or choose GameObject › Prefab › Back to scene, to return to the scene.

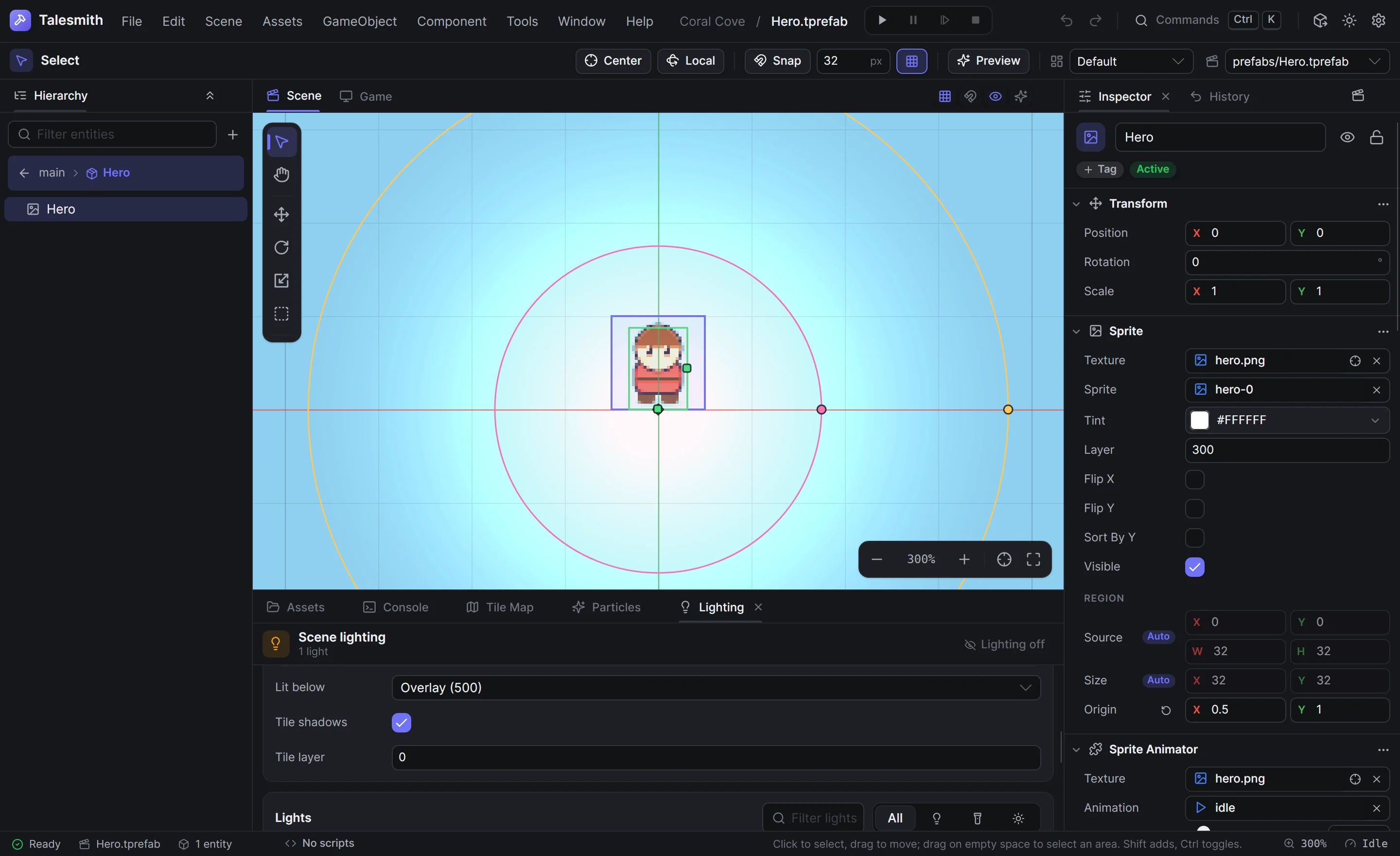

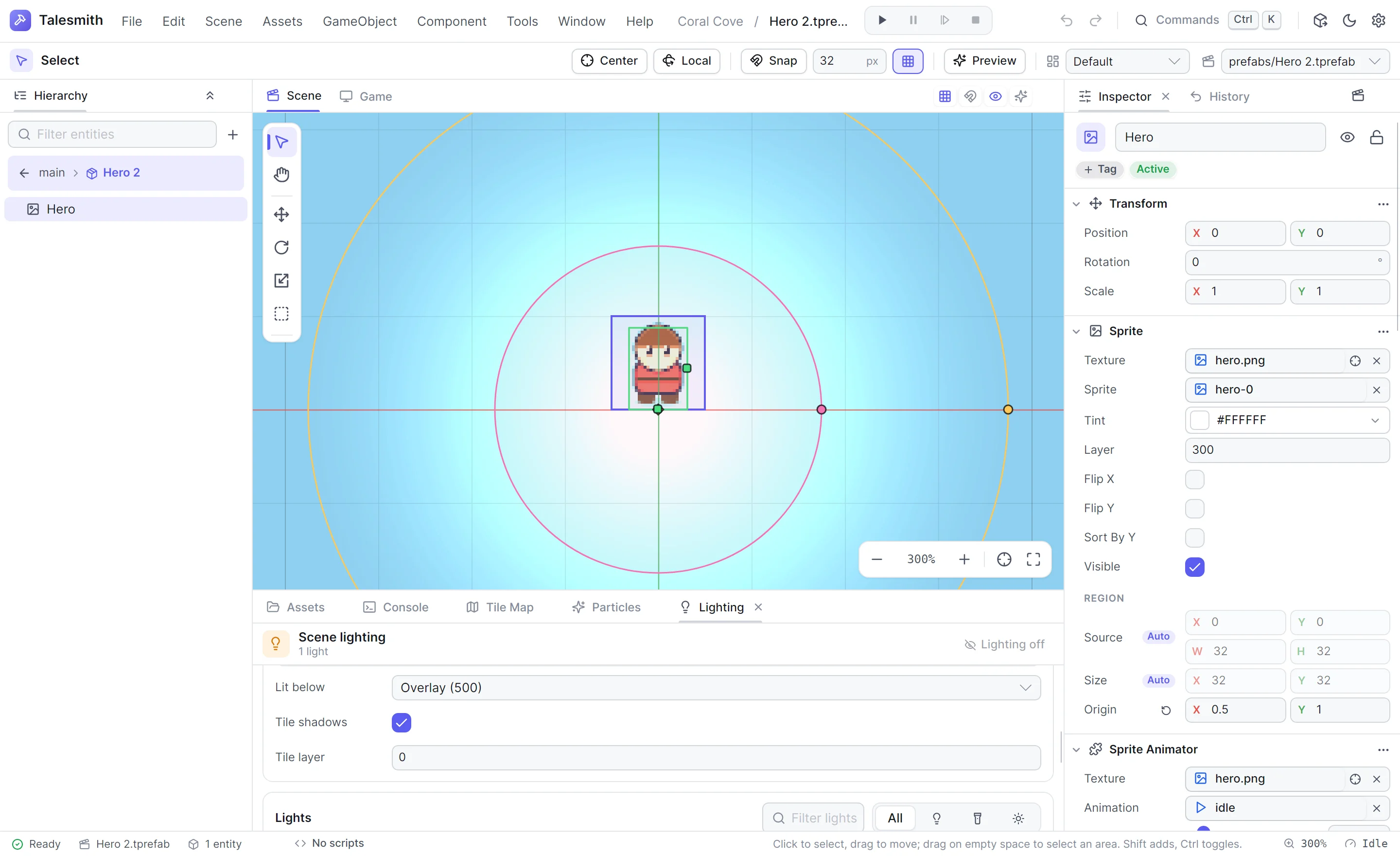

The Hero prefab open for editing. The breadcrumb leads back to the main scene.

Saving the prefab updates every instance in the scene. Entities inside an instance cannot be renamed, deleted or given new components in the scene; open the prefab to change them.

Spawn prefabs from scripts​

Prefabs are also how scripts create things while the game runs: bullets, enemies, coins dropped by a chest. See Spawning and finding entities. A prefab that the scene does not use but a script spawns by path still ships in exported games, as long as the script names it in a string; see Exporting a game.
