Your first game

This tutorial builds Coin Run, a small platformer, from a new project to a game you can send to someone. You start from the platformer template, make its level solid and fill a gap with the tile tools, give the hero a collider and a script that runs and jumps, turn the coins into pickups, light a campfire at dusk, play it in the editor and export it. It takes about half an hour.

Coin Run at the end of the tutorial.

Before you start​

You need Talesmith built and running, as described in Installation, and a code editor for C#, such as Visual Studio Code or Rider. You do not need to know the editor yet: each step names what to click. If you want the lay of the land first, read The interface.

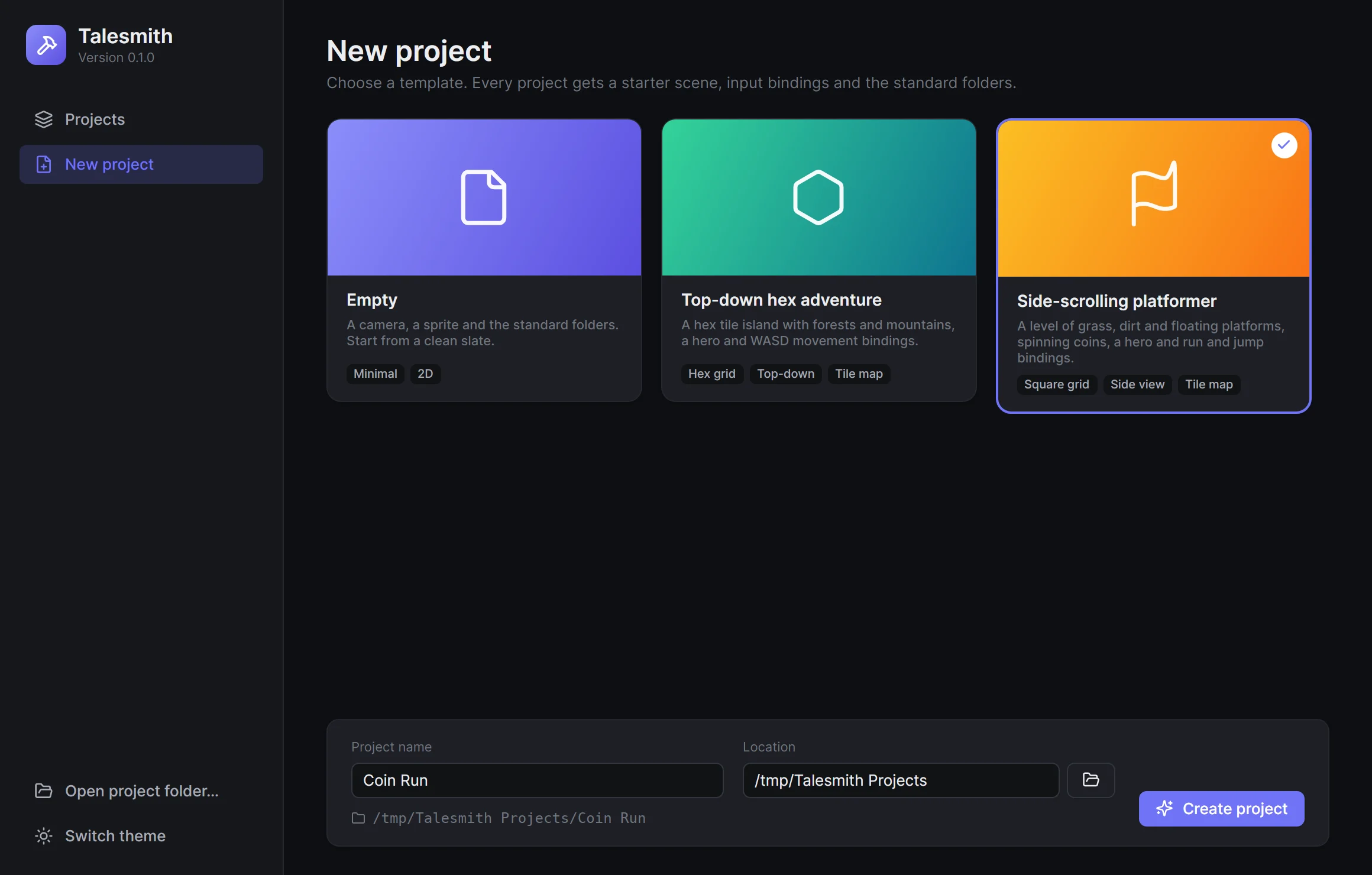

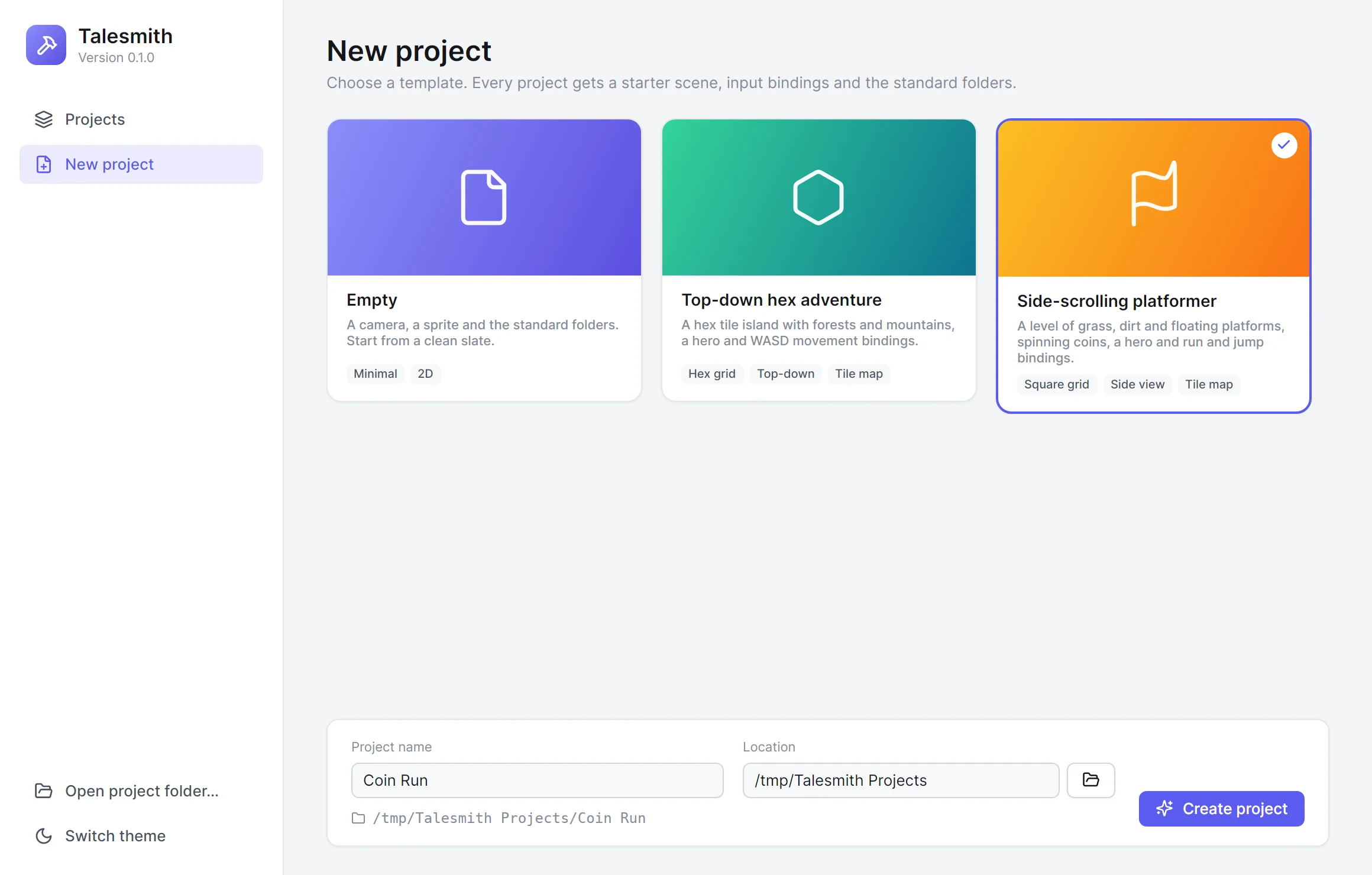

Step 1: Create the project​

  1. Start the editor. The project hub opens.
  2. Click New project in the sidebar.
  3. Click the Side-scrolling platformer template.
  4. Type Coin Run as the Project name, and choose a Location if you want the project somewhere else.
  5. Click Create project.

The editor opens the project on its starter scene, scenes/main.tscene.

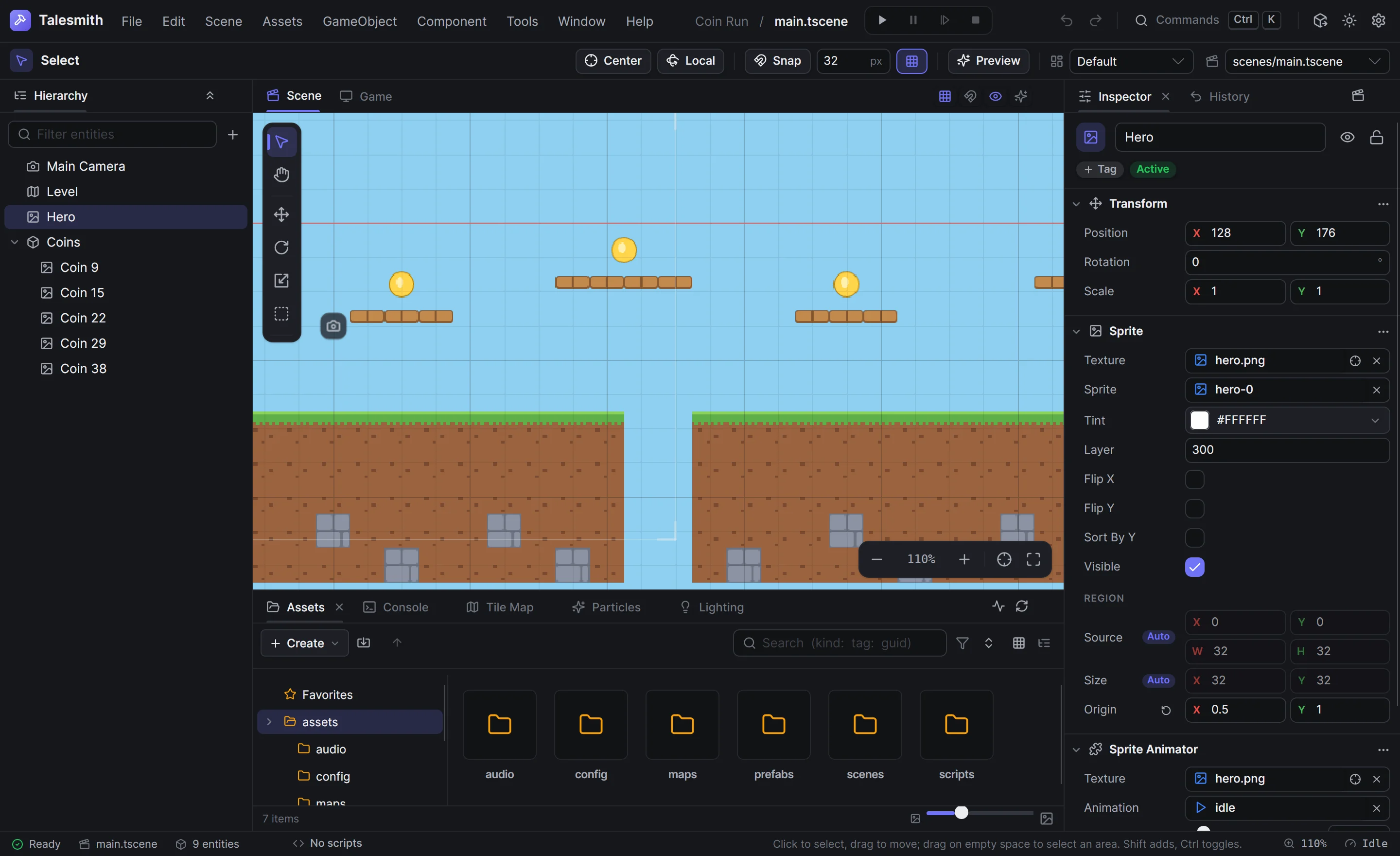

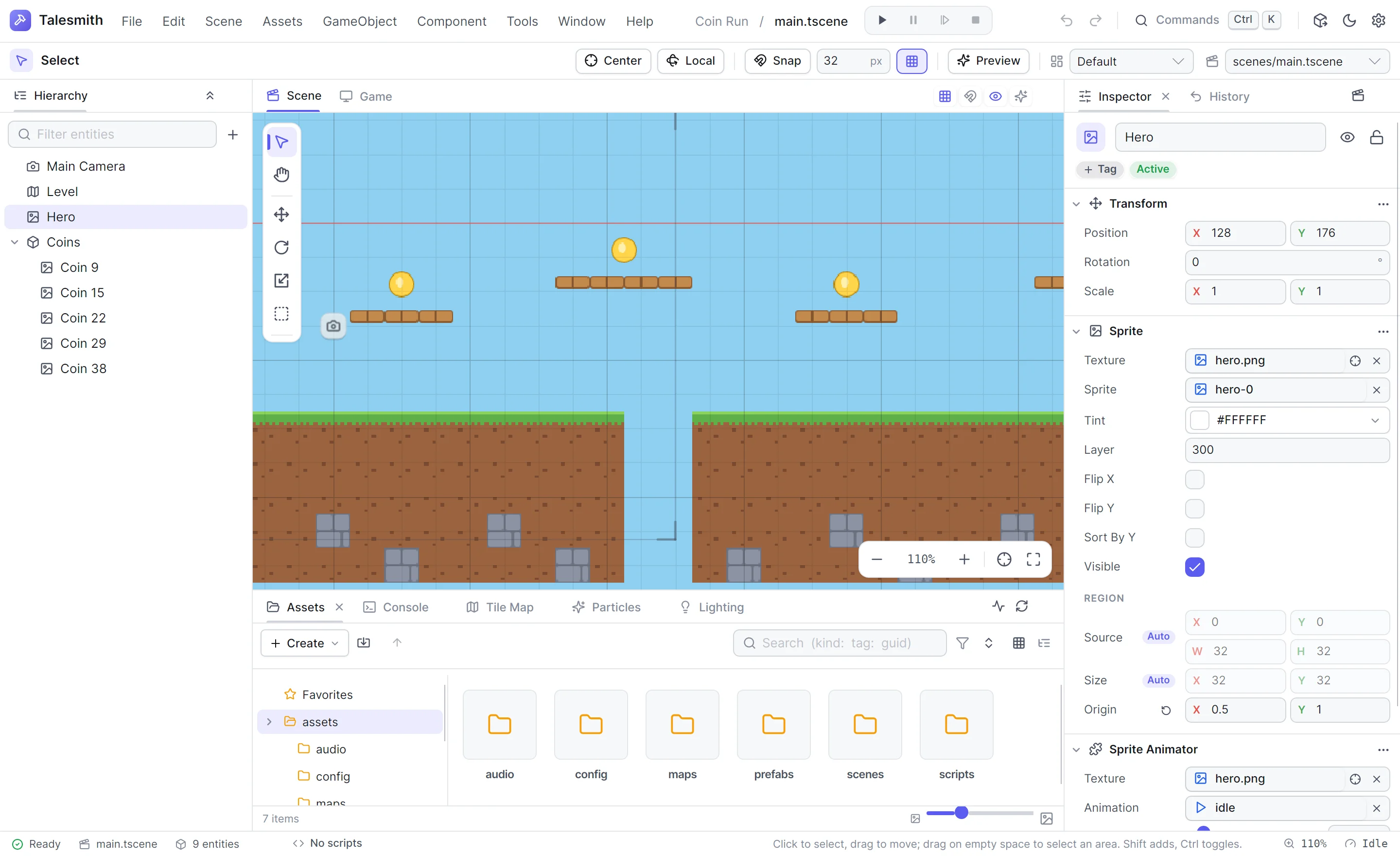

Step 2: Look around​

The template made a level and put a few things in it. The Hierarchy on the left lists them:

EntityWhat it is
Main CameraThe camera the game sees through. The rectangle in the Scene panel shows what it frames.
LevelA tile map, maps/level.hexy, with grass, dirt, floating platforms and gaps.
HeroThe player: a sprite with an idle animation.
CoinsA group with five spinning coins, one above each platform. Click the arrow to expand it.

Click Hero. The Inspector on the right shows its components: a Transform with its position, a Sprite that draws it and a Sprite Animator that plays its idle animation.

Press CtrlP to play. The Game panel shows the scene, the hero breathes and the coins spin, but nothing else happens: nothing in the scene has any gameplay yet. Press CtrlP again to stop.

To look around the scene, drag with the right or middle mouse button to pan, and use the mouse wheel to zoom. Press ShiftF to see the whole scene.

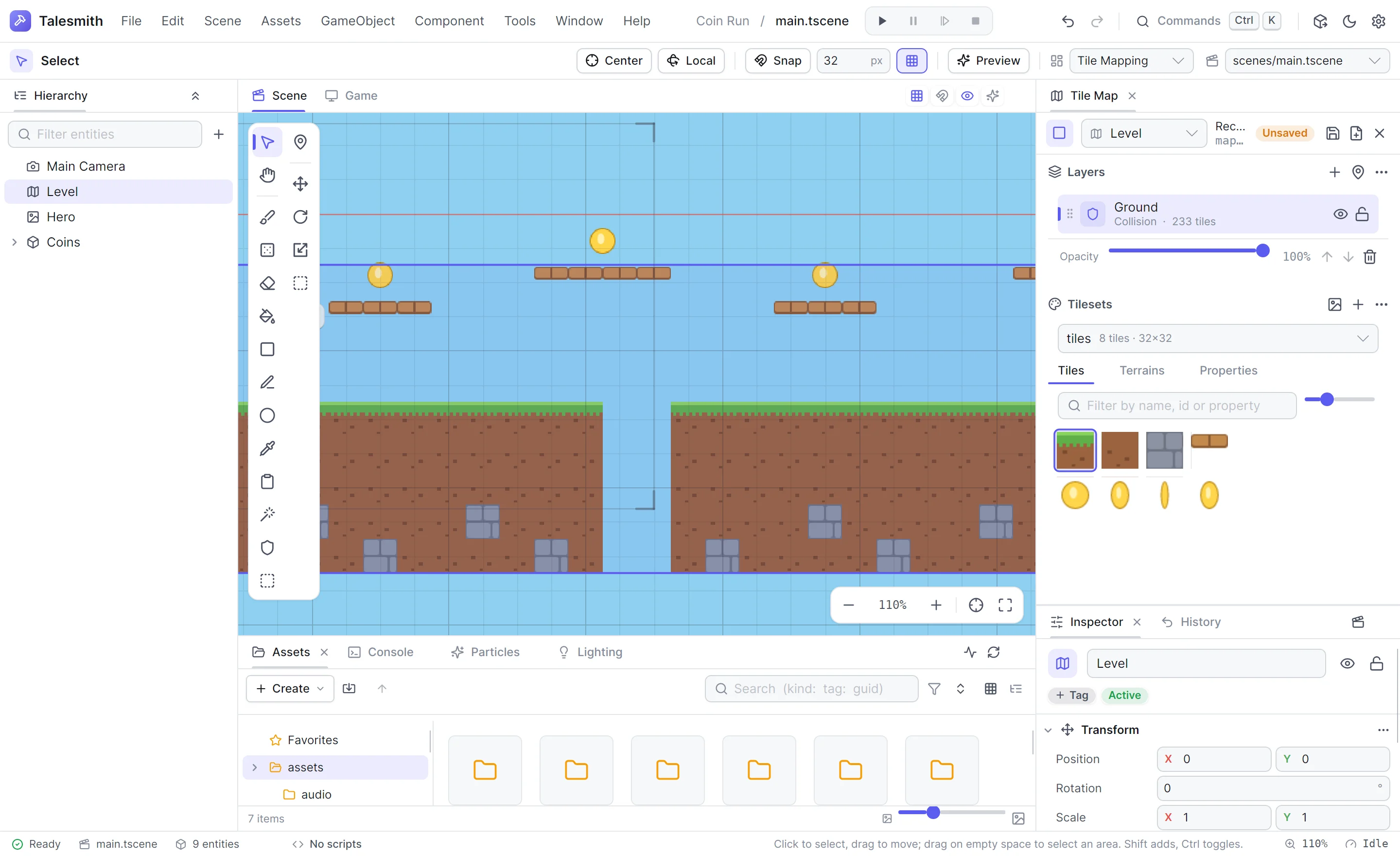

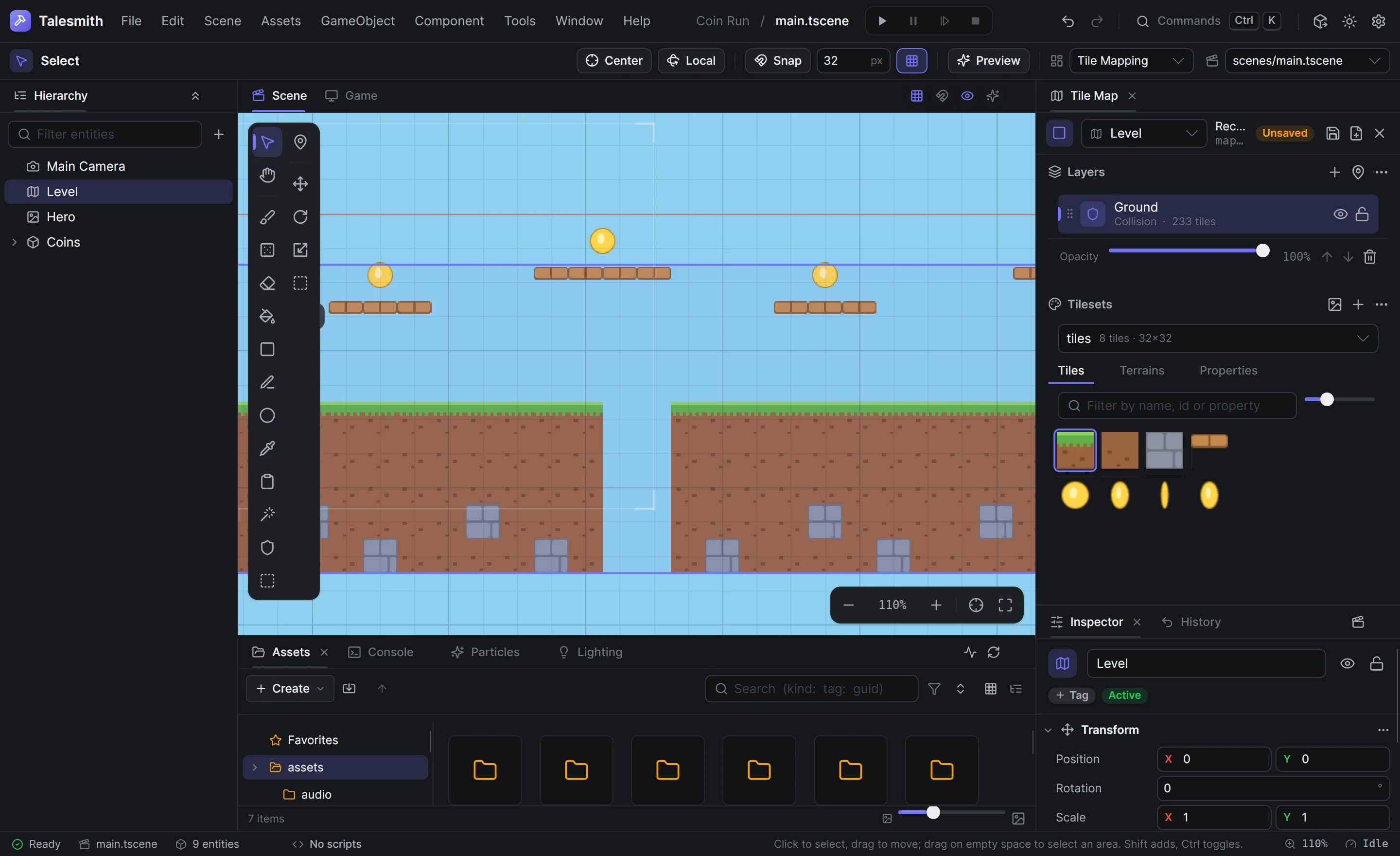

Step 3: Make the ground solid​

The level is drawn, but to the physics engine it is only a picture. Giving its layer the Collision role makes every tile on it solid.

  1. Click Level in the hierarchy.
  2. In the layout picker on the right of the tool options bar, choose Tile Mapping. The Tile Map panel opens on the right, editing the Level map.
  3. In the Layers section, find the Ground layer. The caption under its name reads Ground · 233 tiles: its role, then how many tiles it has.
  4. Click the role icon to the left of the layer's name and choose Collision.

The caption now reads Collision · 233 tiles. Every tile on the layer, including the floating platforms, will block the hero. A collision layer also casts shadows when lights cast them; you will see that in Lighting.

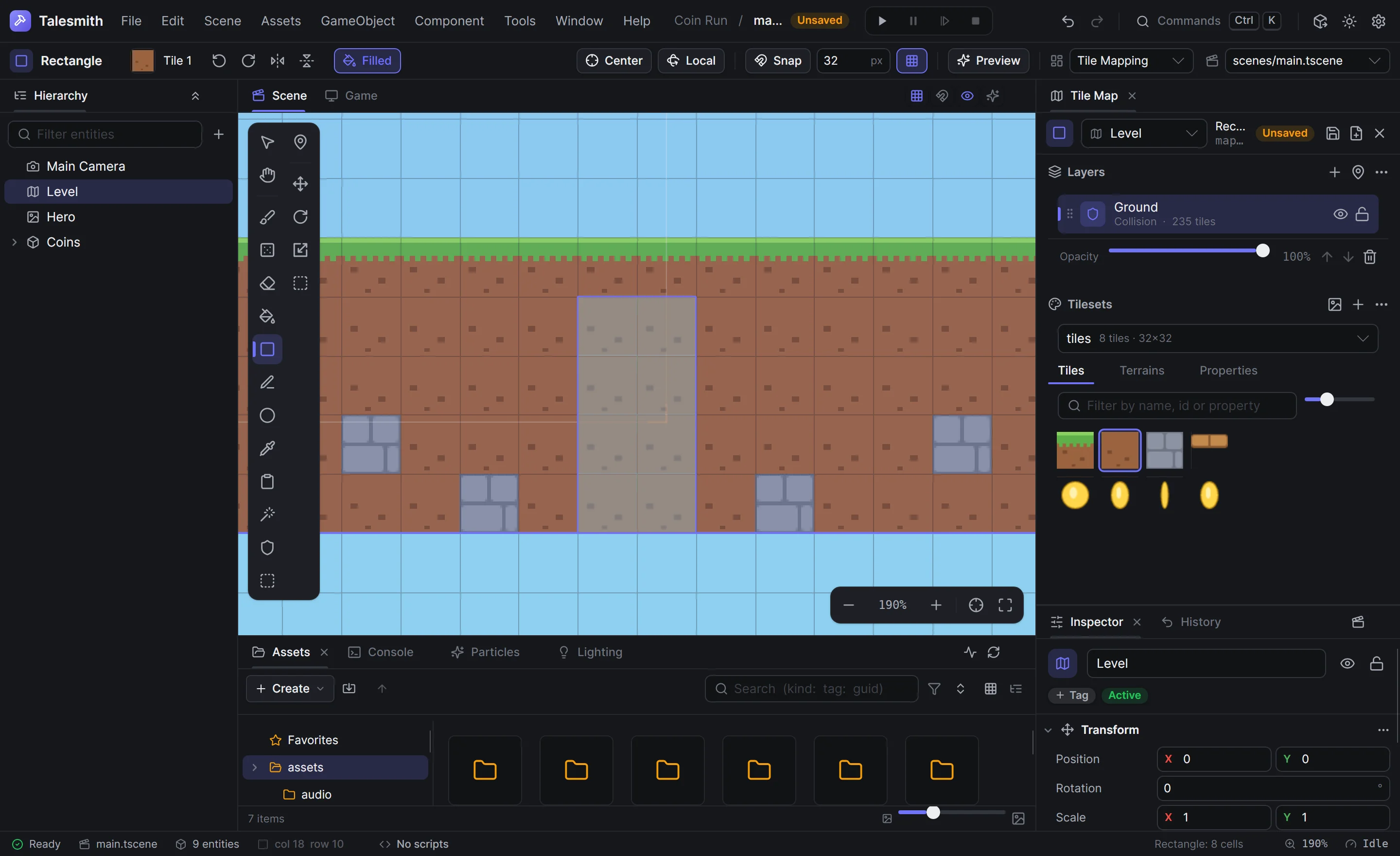

Step 4: Fill a gap​

The level has three gaps. Fill the first one, so the start of the level is easier.

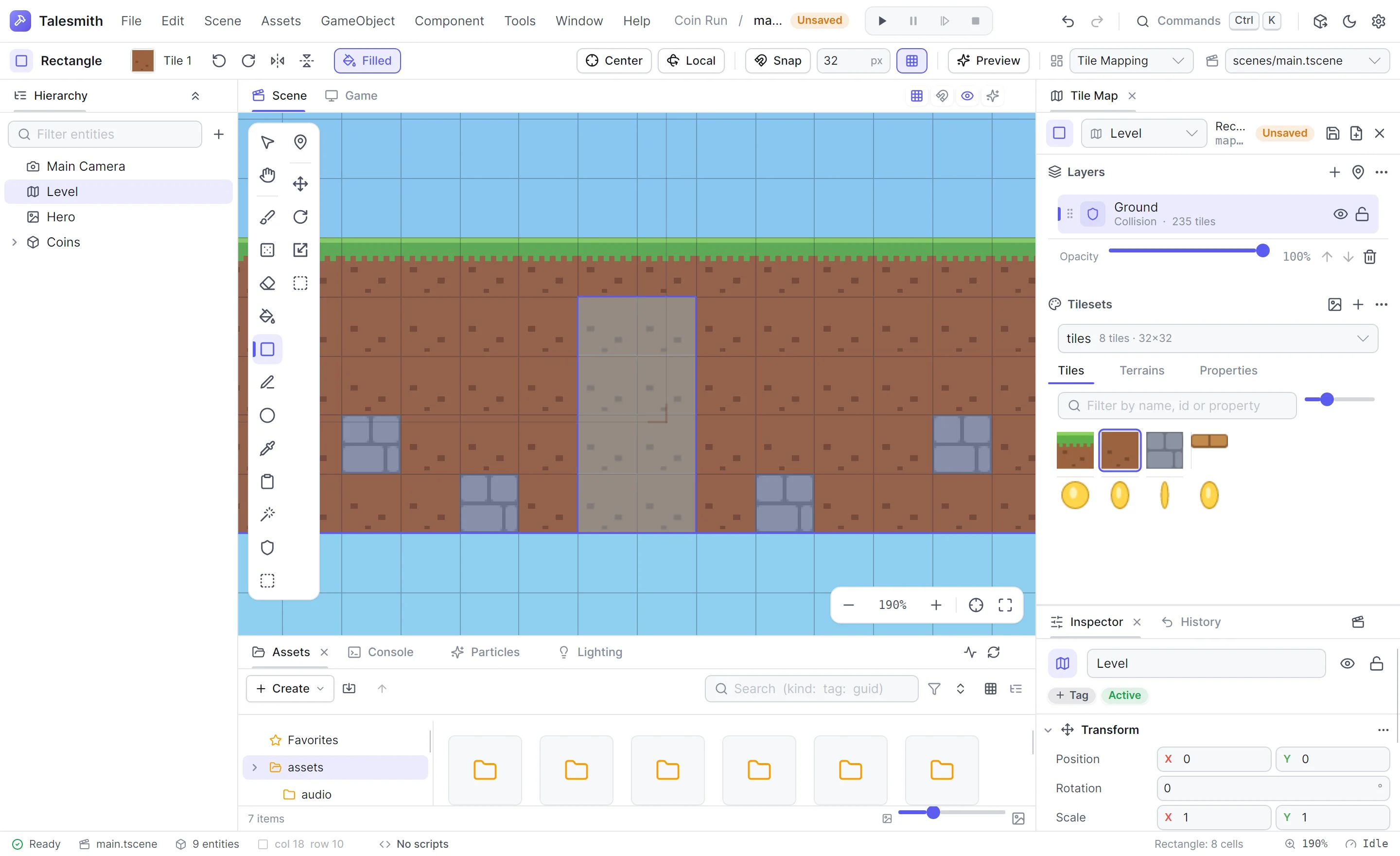

  1. In the Tile Map panel, under Tilesets, click the first tile, the grass. The Brush tool becomes active and the tile shows in the tool options bar.
  2. Zoom in on the first gap in the Scene panel. Drag across the gap at the height of the grass, from one edge to the other. The brush previews the tile under the pointer and paints the two cells as you drag.
  3. Click the second tile, the dirt, and press R for the Rectangle tool.
  4. Drag from the cell under the new grass down to the bottom of the level. The rectangle previews the dirt it will paint; release to paint it.
Dragging a rectangle of dirt under the new grass.

Each stroke is one step you can undo with CtrlZ. If you paint a cell by mistake, drag over it with the right mouse button to erase it.

Press CtrlS to save. Saving the scene also saves the maps it shows; the Unsaved badge in the Tile Map panel goes away.

See Painting tools for every tile tool.

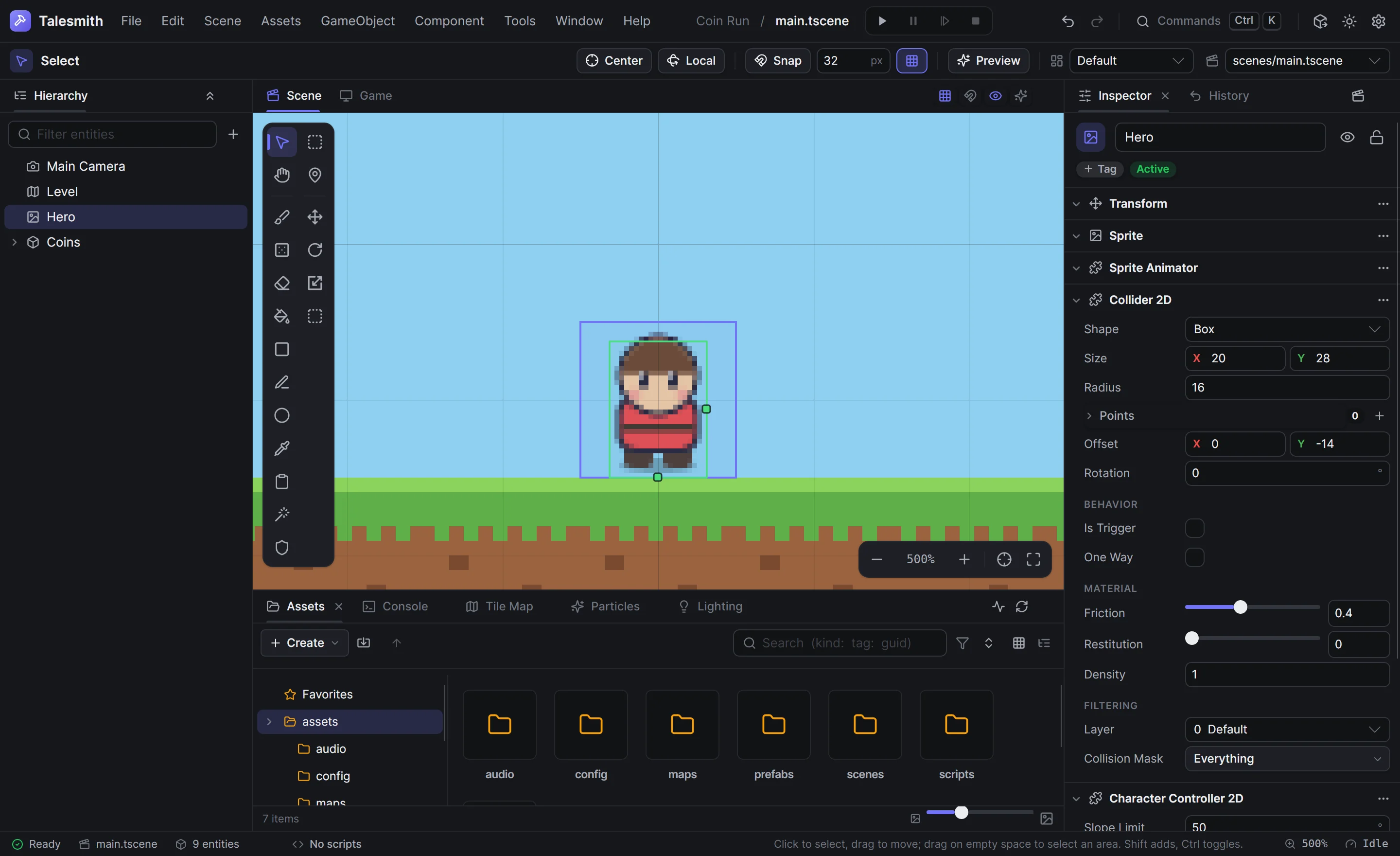

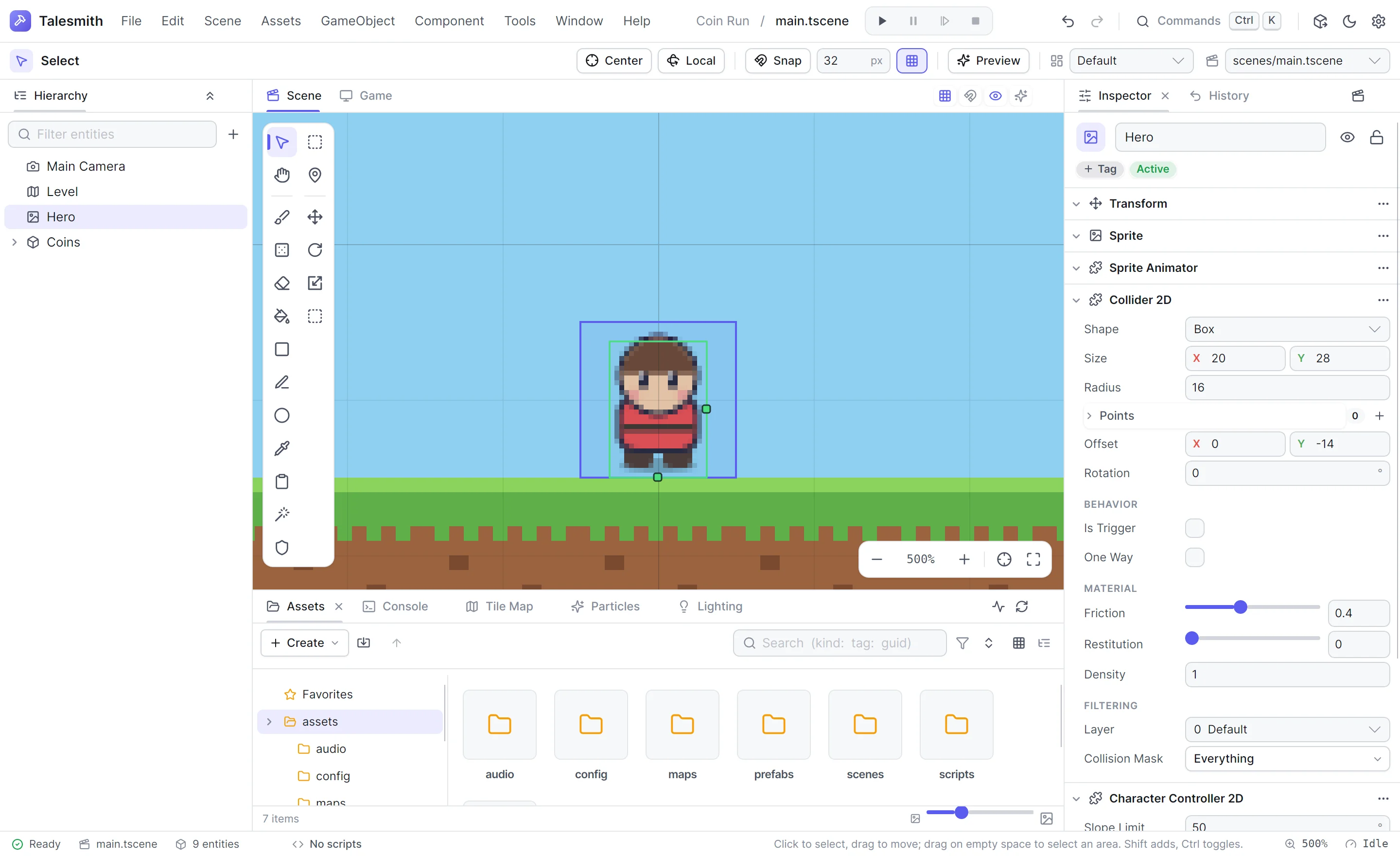

Step 5: Give the hero a body​

The hero needs a shape that collides with the level, and a character controller that moves that shape by sliding along floors and walls.

  1. Click Hero in the hierarchy. If the Tile Map panel still shows, choose Default in the layout picker for more room in the Inspector.
  2. At the bottom of the Inspector, click Add component. Type collider and press Enter to add a Collider 2D.
  3. In the Collider 2D section, set Size to 20 and 28, and Offset to 0 and -14. The hero's position is at its feet, so the offset lifts the box to cover its body. The Scene panel outlines the collider in green.
  4. Click Add component again, type character and press Enter to add a Character Controller 2D. Leave its settings as they are.

Step 6: Write the hero's script​

Now the hero needs to move. Movement is gameplay, and gameplay is written as C# scripts.

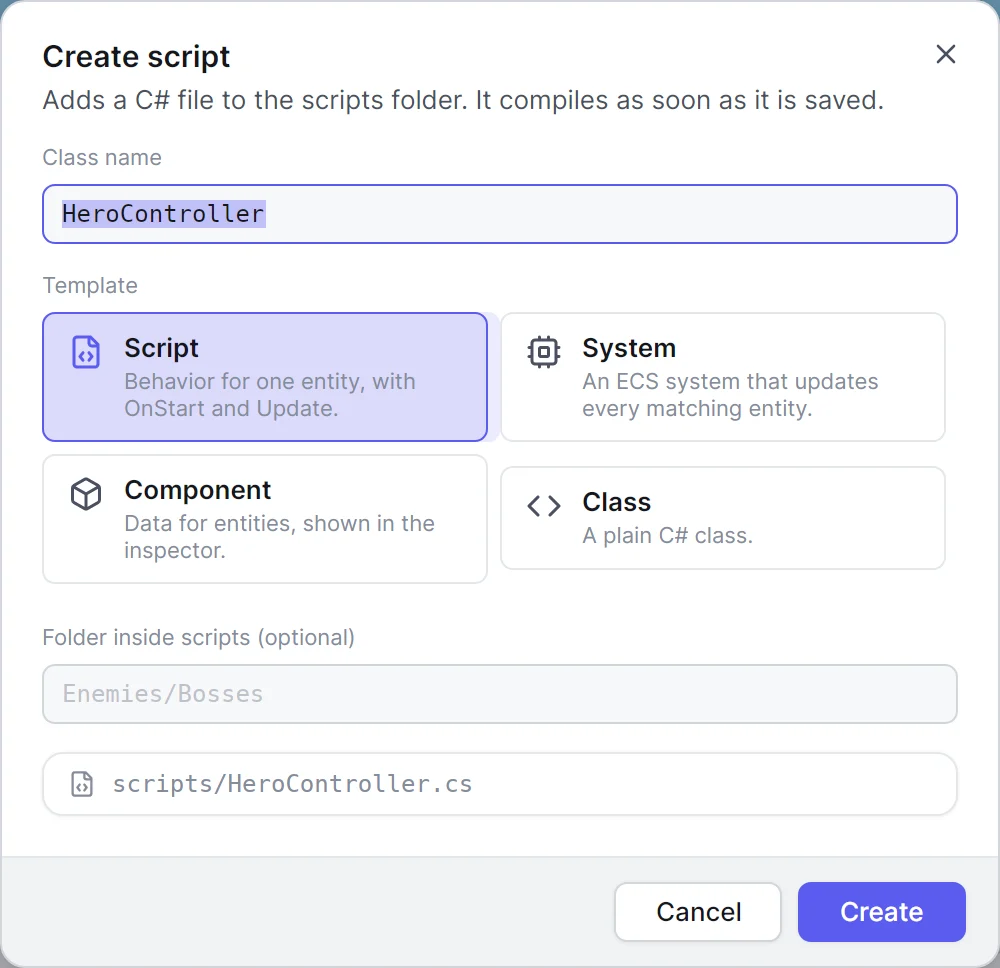

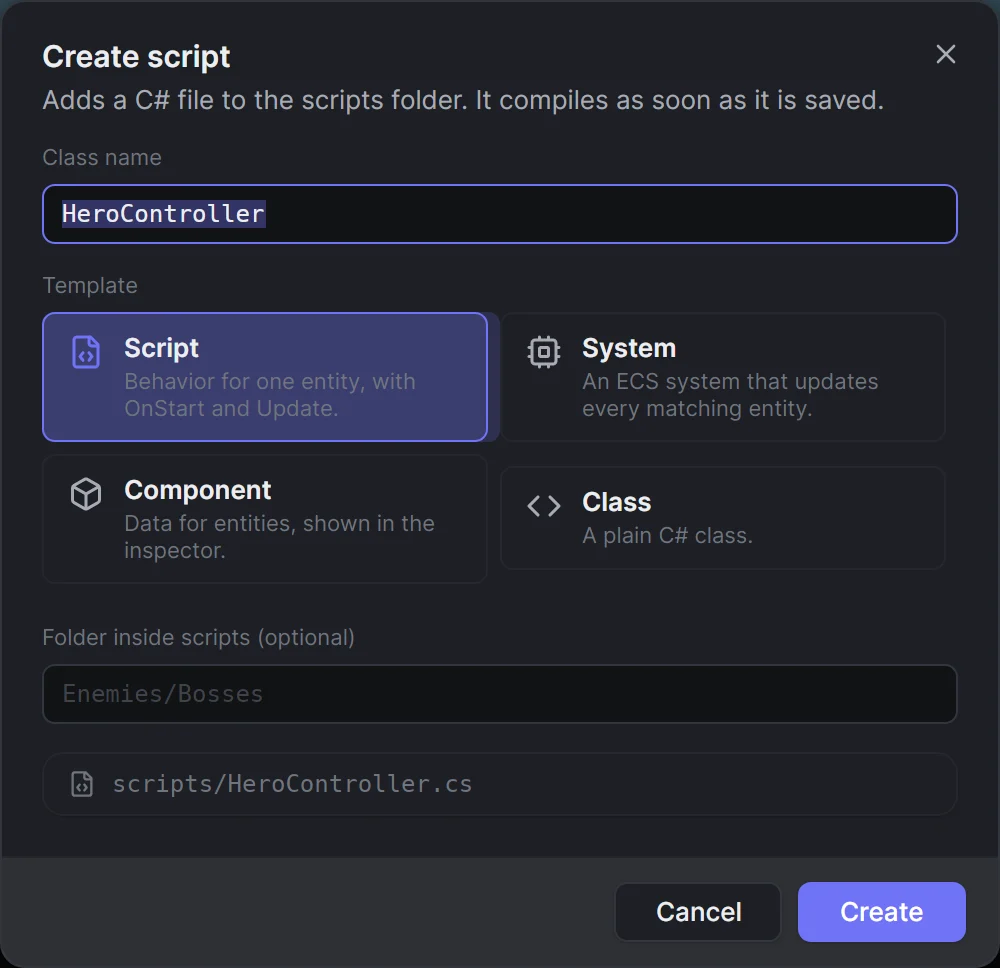

  1. Choose Assets › Create › Script….
  2. Type HeroController as the Class name, keep the Script template and click Create. The editor writes assets/scripts/HeroController.cs and opens it in your code editor.
  3. Replace the contents of the file with the code below and save it.
assets/scripts/HeroController.cs
namespace CoinRun;

/// <summary>Runs with the Run action and jumps with Jump.</summary>
public sealed class HeroController : Script
{
    [Range(0, 600)]
    public float RunSpeed = 220;

    [Range(0, 1500)]
    public float JumpSpeed = 680;

    [Range(0, 4000)]
    public float Gravity = 1600;

    private Vector2 _velocity;
    private Vector2 _start;
    private bool _jumpPressed;

    protected override void OnStart() => _start = Position;

    protected override void Update()
    {
        if (Input.WasPressed("Jump"))
            _jumpPressed = true;
    }

    protected override void FixedUpdate()
    {
        var dt = Time.DeltaTime;
        var grounded = GetComponent<CharacterController2D>().IsGrounded;

        _velocity.X = Input.Axis("Run") * RunSpeed;
        _velocity.Y += Gravity * dt;
        if (_jumpPressed && grounded)
            _velocity.Y = -JumpSpeed;
        _jumpPressed = false;

        var hits = Physics.MoveCharacter(Entity, _velocity * dt);
        if ((hits & (CharacterCollisions.Below | CharacterCollisions.Above)) != 0)
            _velocity.Y = 0;

        if (_velocity.X != 0)
            GetComponent<Sprite>().FlipX = _velocity.X < 0;

        if (Position.Y > 600)
        {
            Position = _start;
            _velocity = Vector2.Zero;
        }
    }
}

What the script does:

  • Update runs every frame and remembers a press of the Jump action, so a quick tap is never missed.
  • FixedUpdate runs at a steady 60 steps a second, which is where movement belongs. It sets the horizontal speed from the Run action, adds gravity, starts a jump when the hero stands on the ground, and asks the physics engine to move the character. MoveCharacter slides the collider along whatever it hits and reports the sides it touched; touching the ground or a ceiling stops the fall or the jump.
  • Falling into a gap below Y 600 puts the hero back where it started.
  • Run and Jump are input actions the template defined: A and D or the arrow keys run, Space, W or ↑ jump. You can change them in Project Settings › Input.

When you save the file, the editor compiles it. The status bar shows Compiling scripts… and then Scripts compiled in and the time it took. If it shows errors instead, click it: the console lists each error with its file and line.

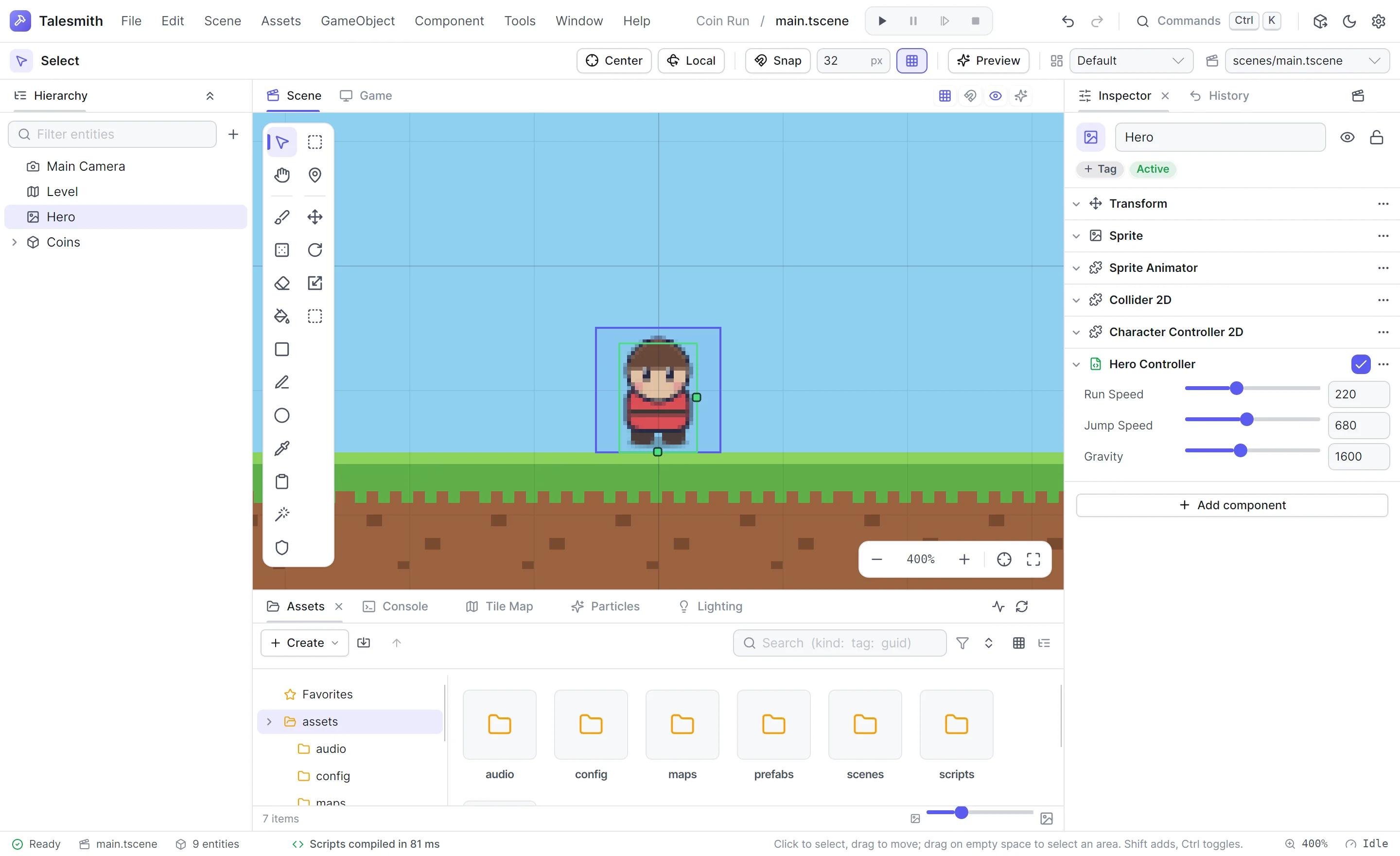

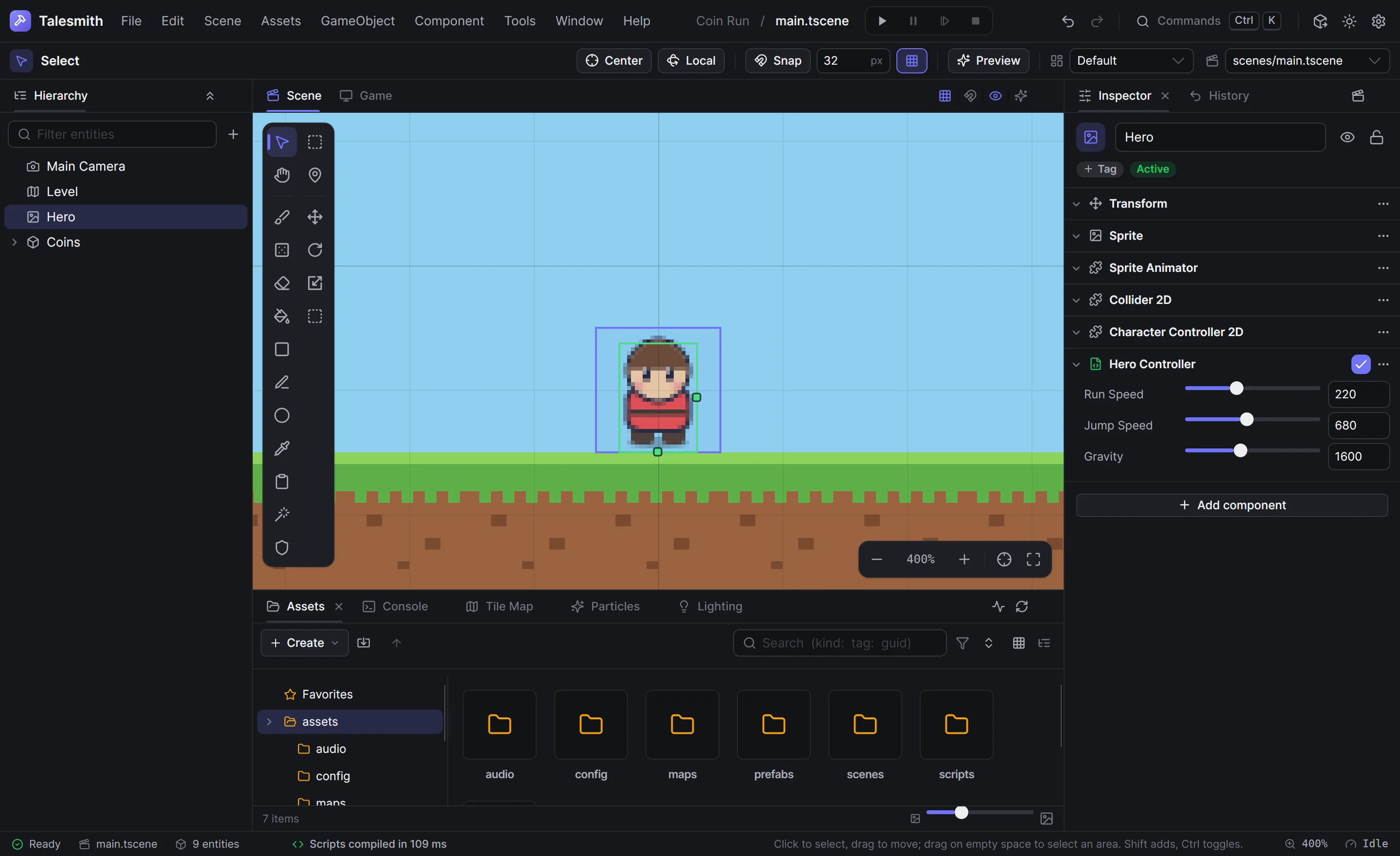

Now attach the script:

  1. Click Hero in the hierarchy.
  2. Click Add component. Under Scripts at the bottom of the list, choose Hero Controller.

The script gets its own section in the Inspector with its three public fields. The [Range] attributes give them sliders.

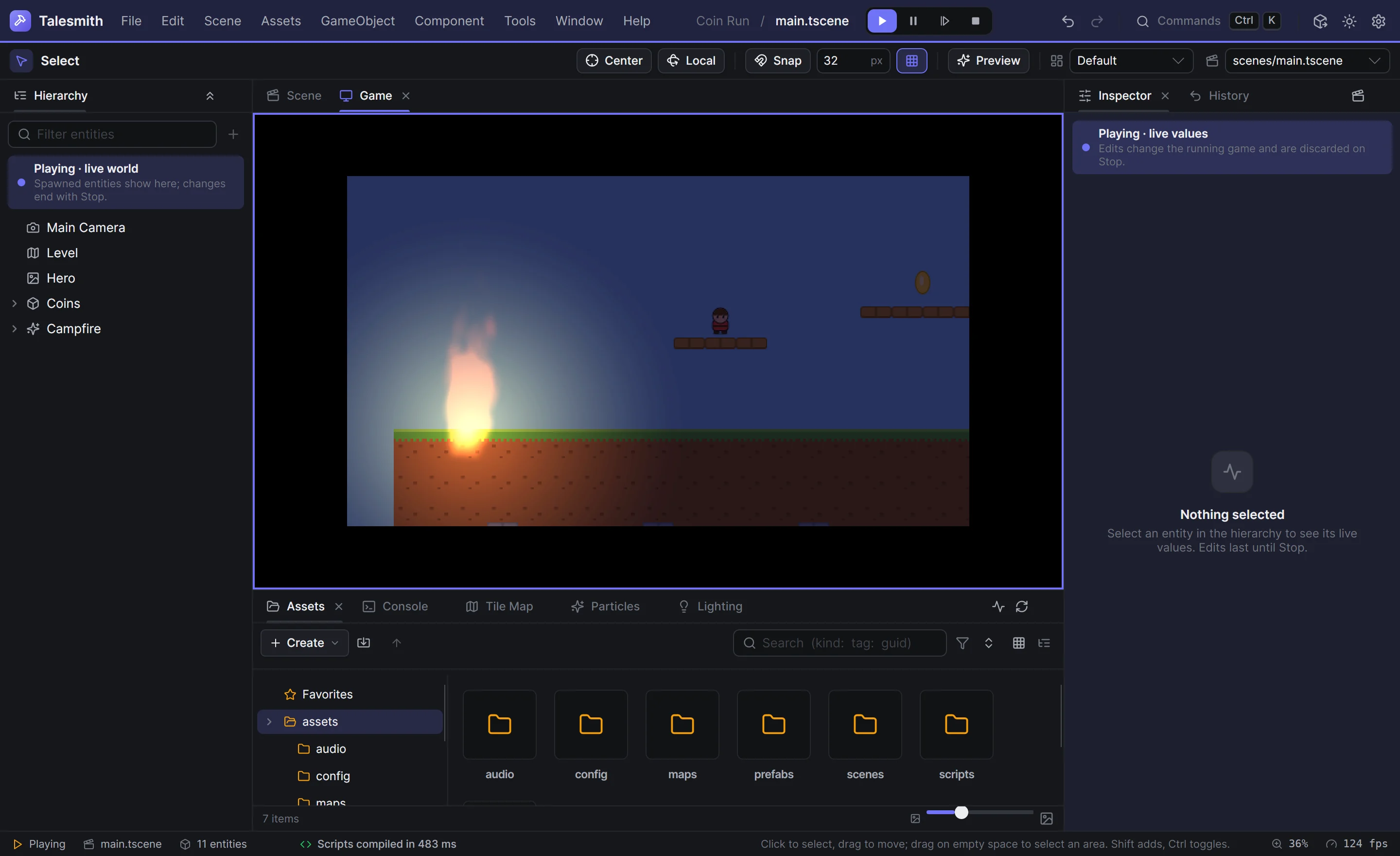

Step 7: Play​

Press CtrlP. The Game panel takes the keyboard, so press D to run right and Space to jump. Run over the gap you filled, jump onto the platforms, and fall into one of the other gaps to see the hero return to the start.

While the game plays, the app bar turns the accent color, and the hierarchy and inspector show the running game instead of the scene:

  1. Click Hero in the hierarchy. The inspector shows its live values.
  2. Drag Jump Speed to 900 and jump. The hero jumps much higher at once.
  3. Press CtrlShiftP to pause and F10 to step one frame at a time. Press CtrlShiftP again to resume.
  4. Press ShiftF5, or CtrlP, to stop.

Back in the editor, Jump Speed reads 680 again: changes made while playing end with Stop. To keep a value you found while playing, write it down and set it after stopping. See Play mode.

Step 8: Collect the coins​

The coins need a trigger, an area that reports when something enters it without blocking it, and a script that removes the coin when the hero touches it.

  1. Choose Assets › Create › Script…, type Coin as the Class name and click Create. Replace the file's contents with the code below and save it.

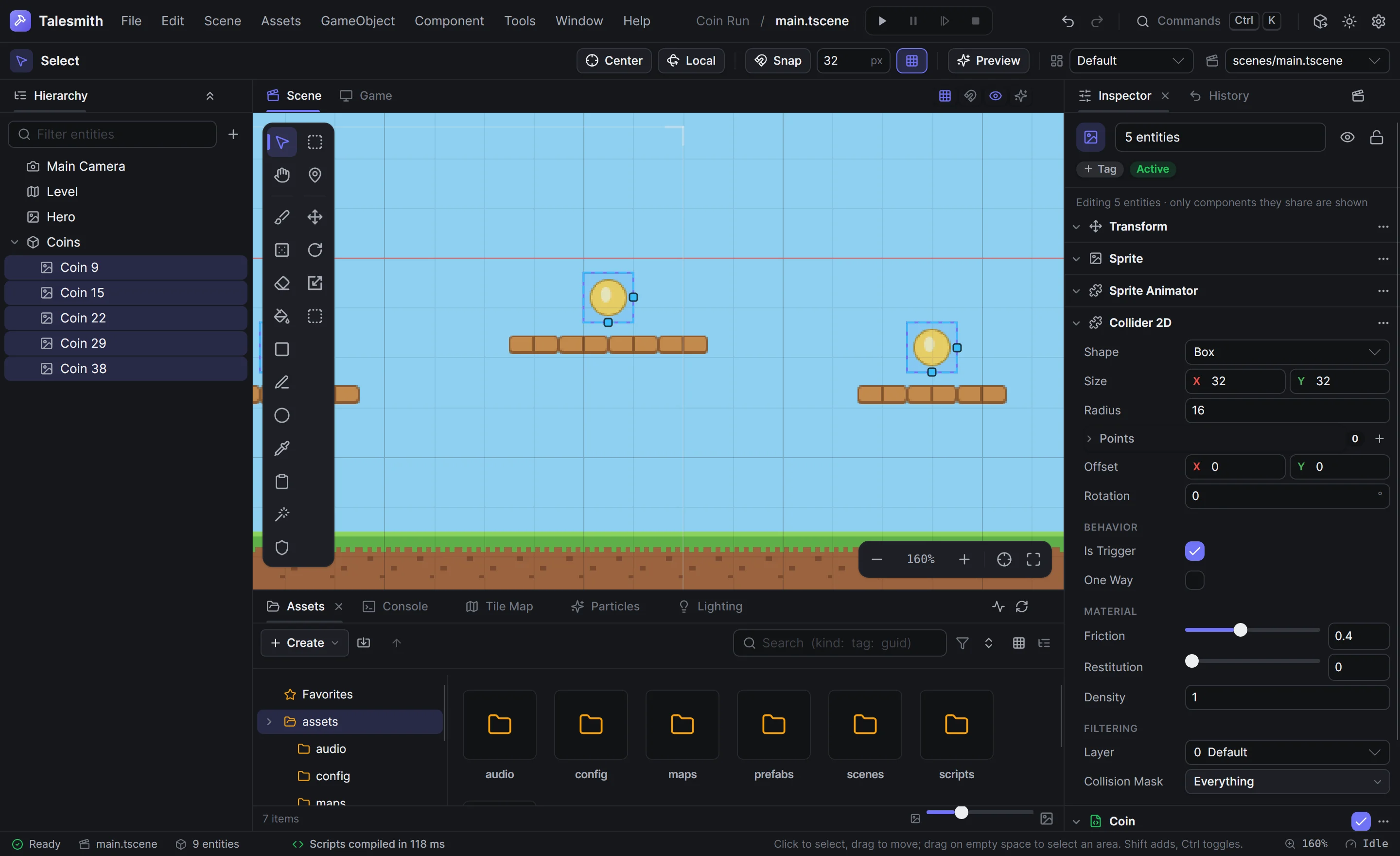

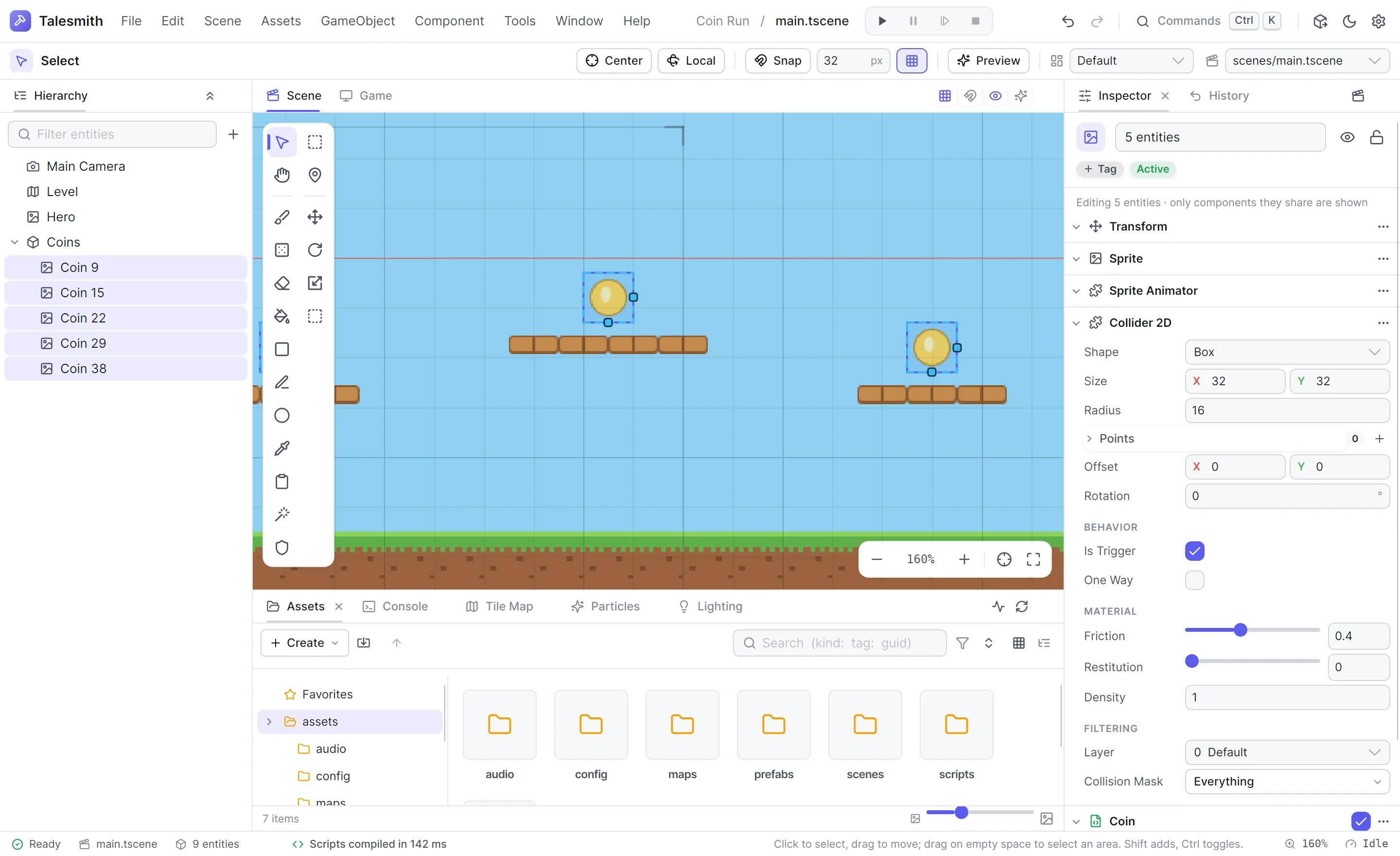

  2. In the hierarchy, expand Coins, click Coin 9, then hold Shift and click Coin 38. All five coins are selected, and the Inspector reads Editing 5 entities.
  3. Click Add component and add a Collider 2D. Every coin gets one.
  4. In the Collider 2D section, tick Is Trigger.
  5. Click Add component and choose Coin under Scripts.
assets/scripts/Coin.cs
namespace CoinRun;

/// <summary>Disappears when the hero touches it.</summary>
public sealed class Coin : Script
{
    public int Value = 1;

    protected override void OnTriggerEnter(in ContactInfo contact)
    {
        if (GetScript<HeroController>(contact.Other) is null)
            return;
        Log.Info($"Picked up a coin worth {Value}");
        Destroy();
    }
}

OnTriggerEnter runs when another collider enters the coin's trigger. The script checks that it was the hero, logs a message and destroys the coin. Play again and collect a coin: it disappears, and the Console at the bottom shows the message, with the name of the coin that logged it.

Selecting several entities and changing them at once is quicker than repeating a change five times. When you have many copies of one thing, a prefab is better still: change the prefab once and every copy follows.

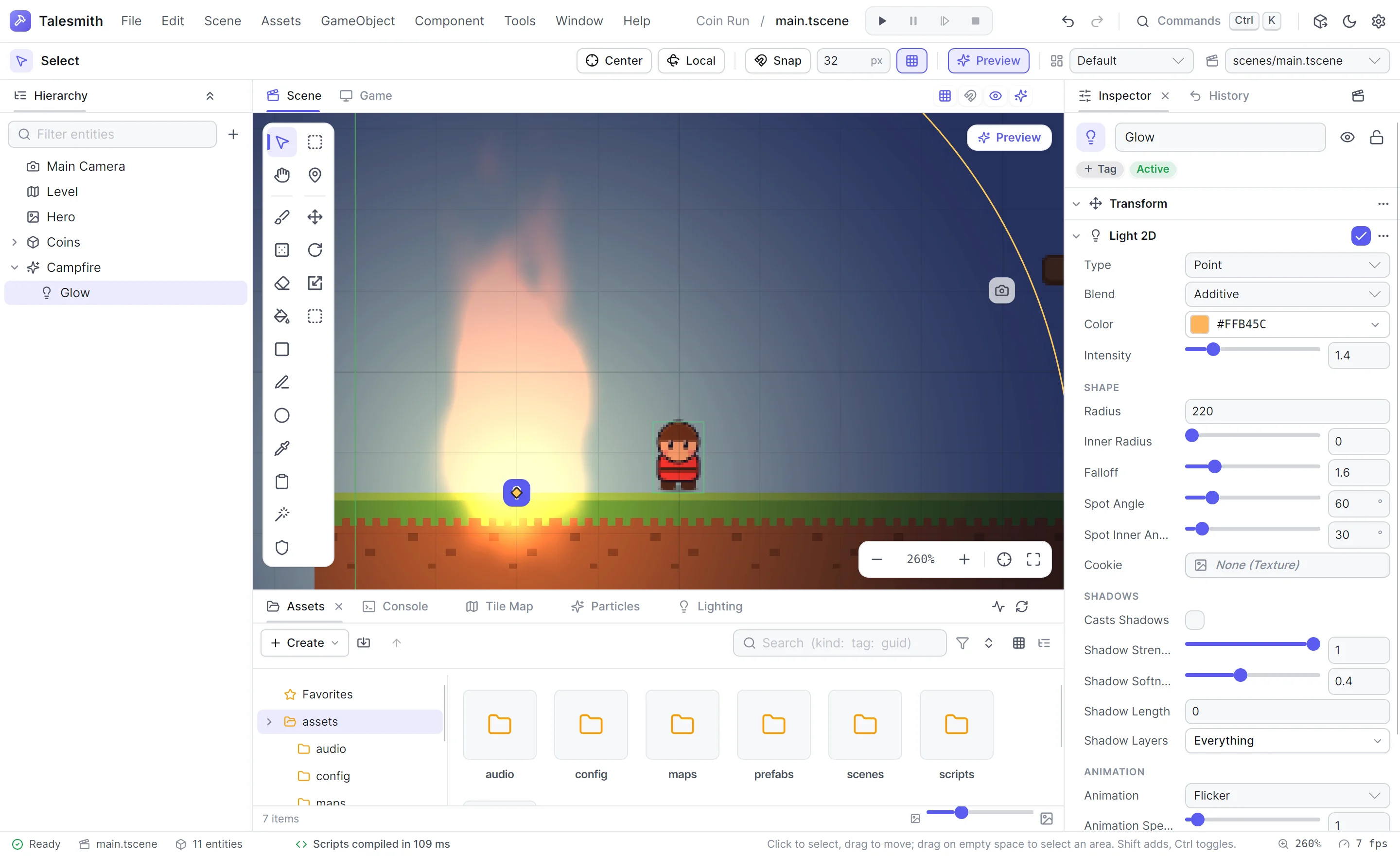

Step 9: Light a campfire at dusk​

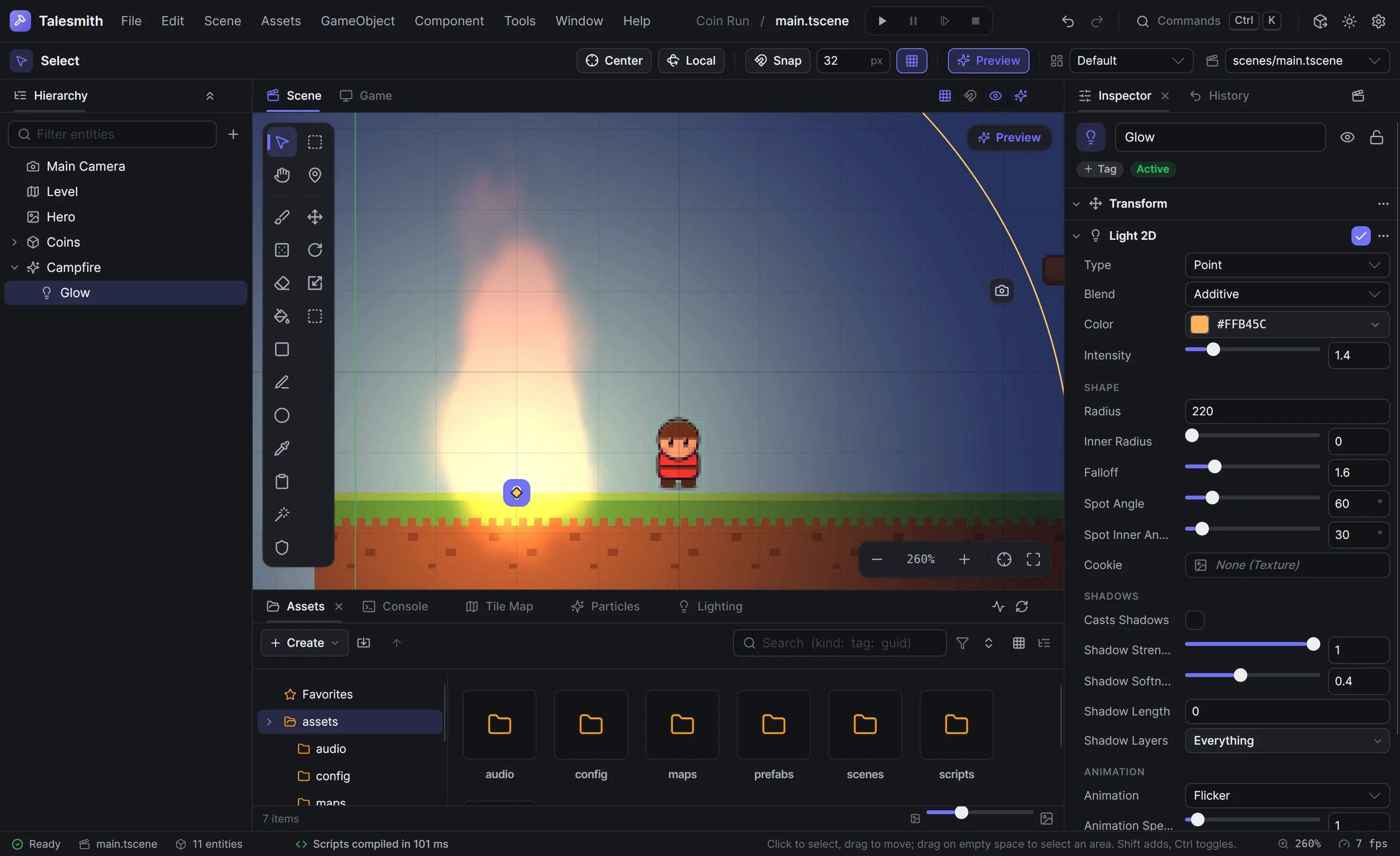

  1. Right-click an empty area of the hierarchy and choose 2D Object › Particle Emitter › Fire. A Fire entity appears in the middle of the view, with flames.
  2. Press F2, type Campfire and press Enter.
  3. In the Transform section, set Position to 64 and 176, on the grass left of the hero.
  4. Right-click Campfire in the hierarchy and choose 2D Object › Light › Point Light. The light is created as a child of the campfire, at its position. Rename it Glow.
  5. In the Light 2D section, set Color to #FFB45C, Intensity to 1.4 and Radius to 220, and under Animation choose Flicker.
  6. Open the Lighting tab in the bottom panels. Under Presets, click Dusk. The ambient light turns a dim violet, and the fire's light stands out.
  7. Click Preview in the tool options bar to watch the flames move and the light flicker in the Scene panel.

See Particles to change the flames, and Lighting for shadows and the other kinds of light.

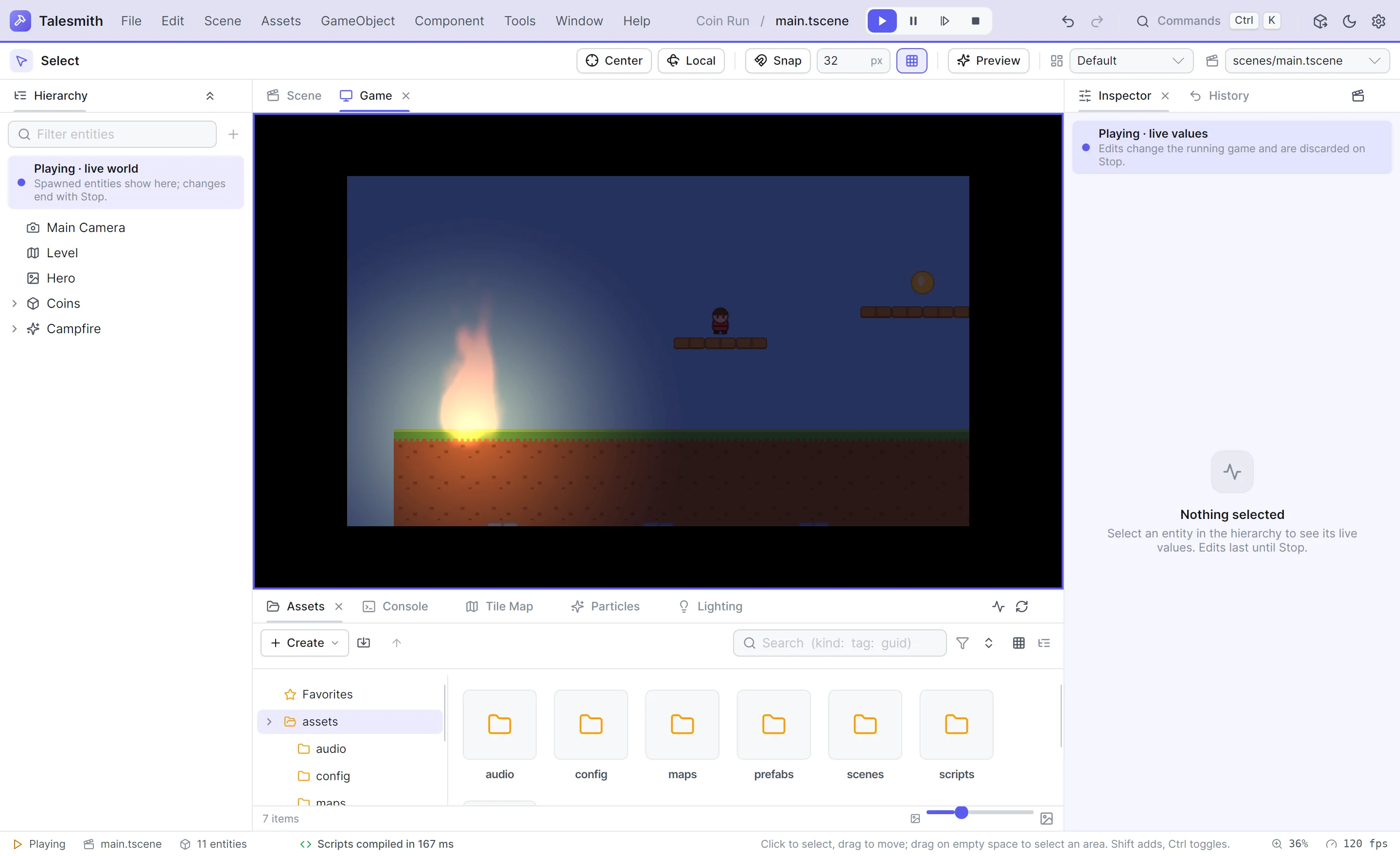

Press CtrlS to save, then CtrlP to play the finished level.

Step 10: Export the game​

  1. Choose File › Build settings…. The Build dialog opens.
  2. Under Platform, click the card marked This PC.
  3. Under Profile, keep Release.
  4. Click Build and Run.

The dialog lists each step as the build runs: checking the project, compiling the scripts, collecting the assets the game uses, packing them and preparing the player. The first build for a platform publishes the player, which takes a minute or two; later builds reuse it and take seconds. When it finishes, the dialog shows a report and the game starts in its own window.

The build is in the builds folder of the project, such as builds/Coin Run-linux-x64. That folder is the whole game: copy it to another computer of the same platform and run Coin Run (Coin Run.exe on Windows). Players do not need Talesmith or .NET. See Exporting a game for the other platforms, profiles and the report.
